Busway and Busduct
Busway is essential infrastructure for efficient power distribution, particularly in power-intensive environments like data centers and base stations. Soeteck‘s Intelligent Elastic Busway System features a modular design that offers high flexibility and customization to meet various power distribution needs.

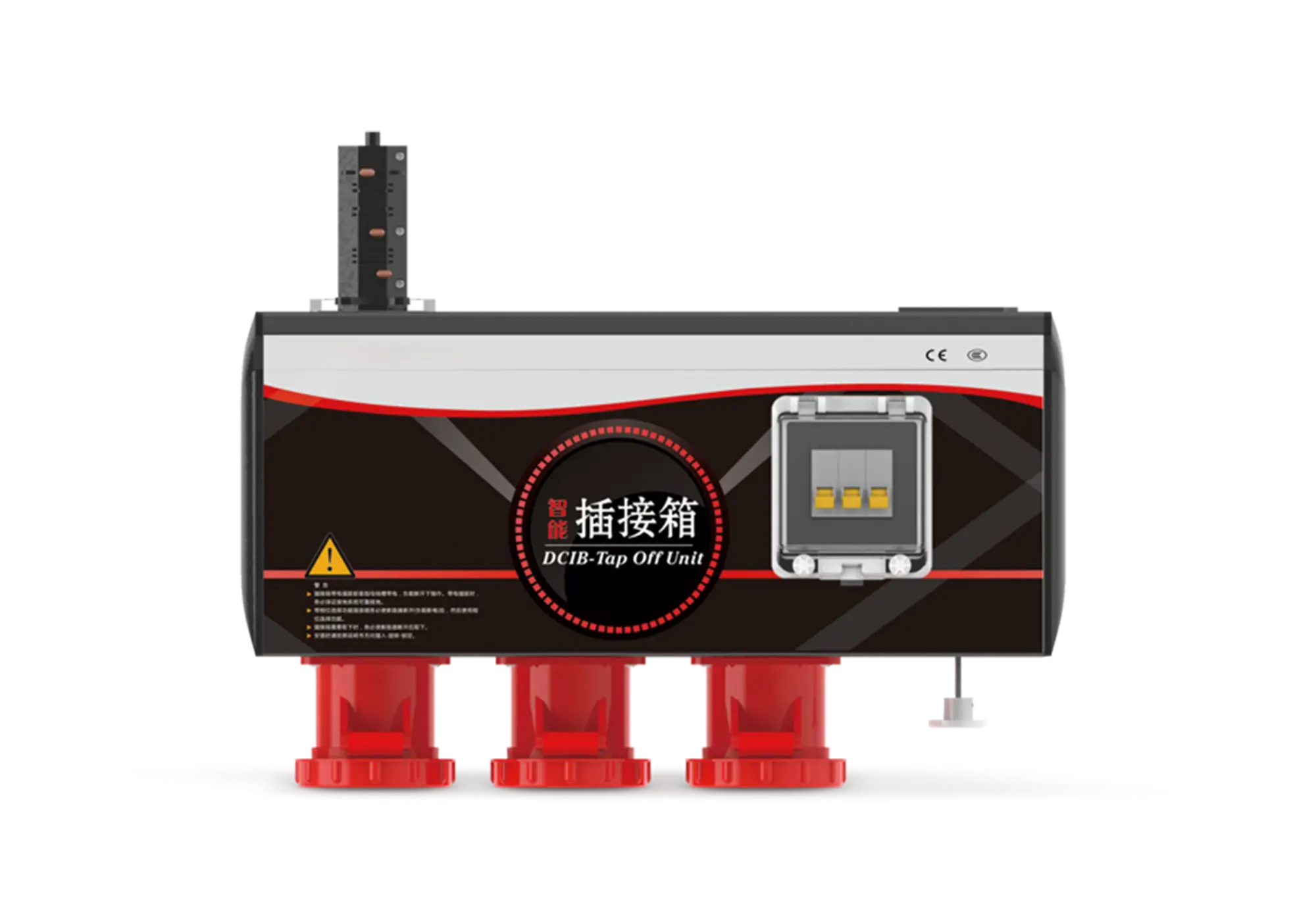

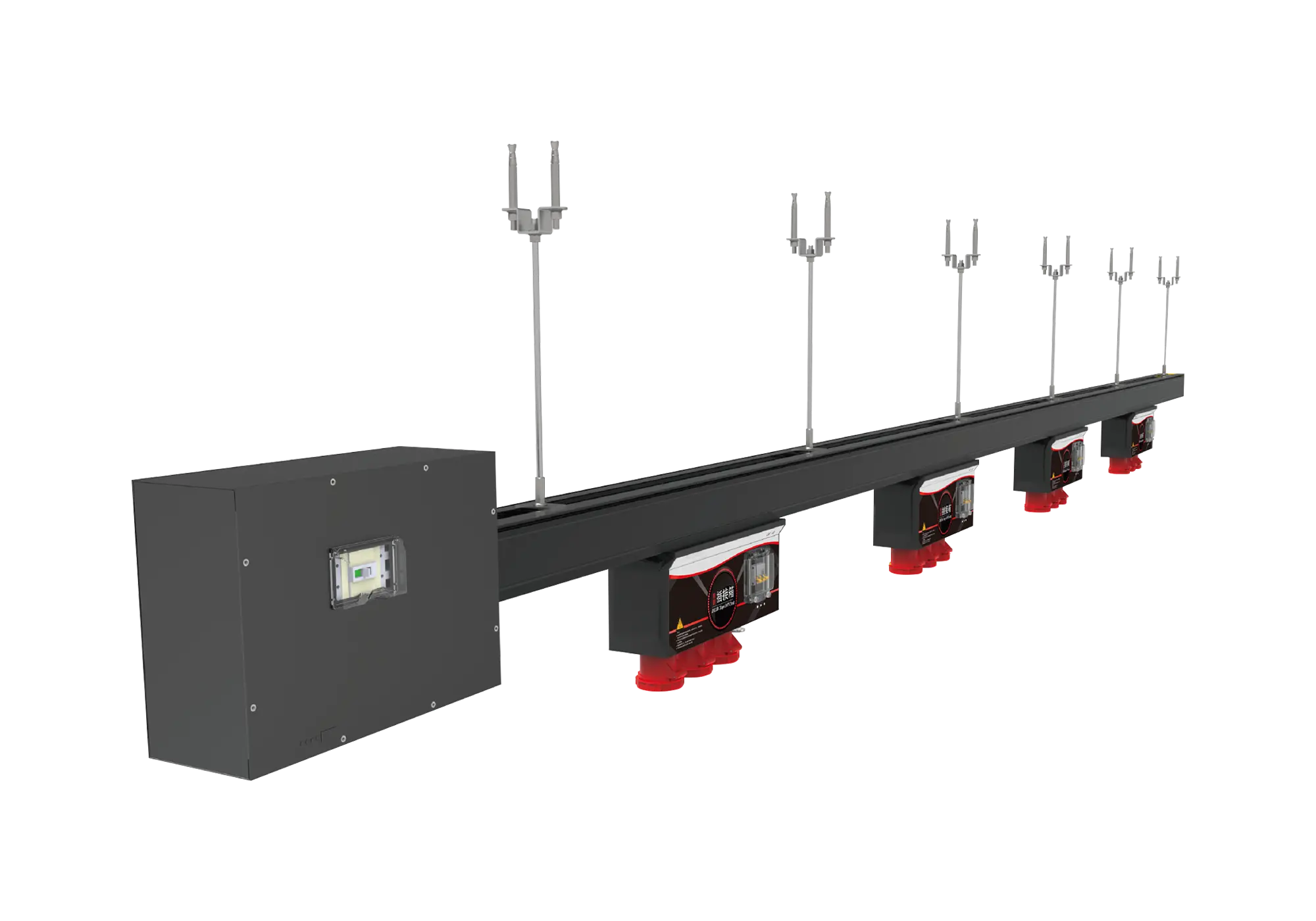

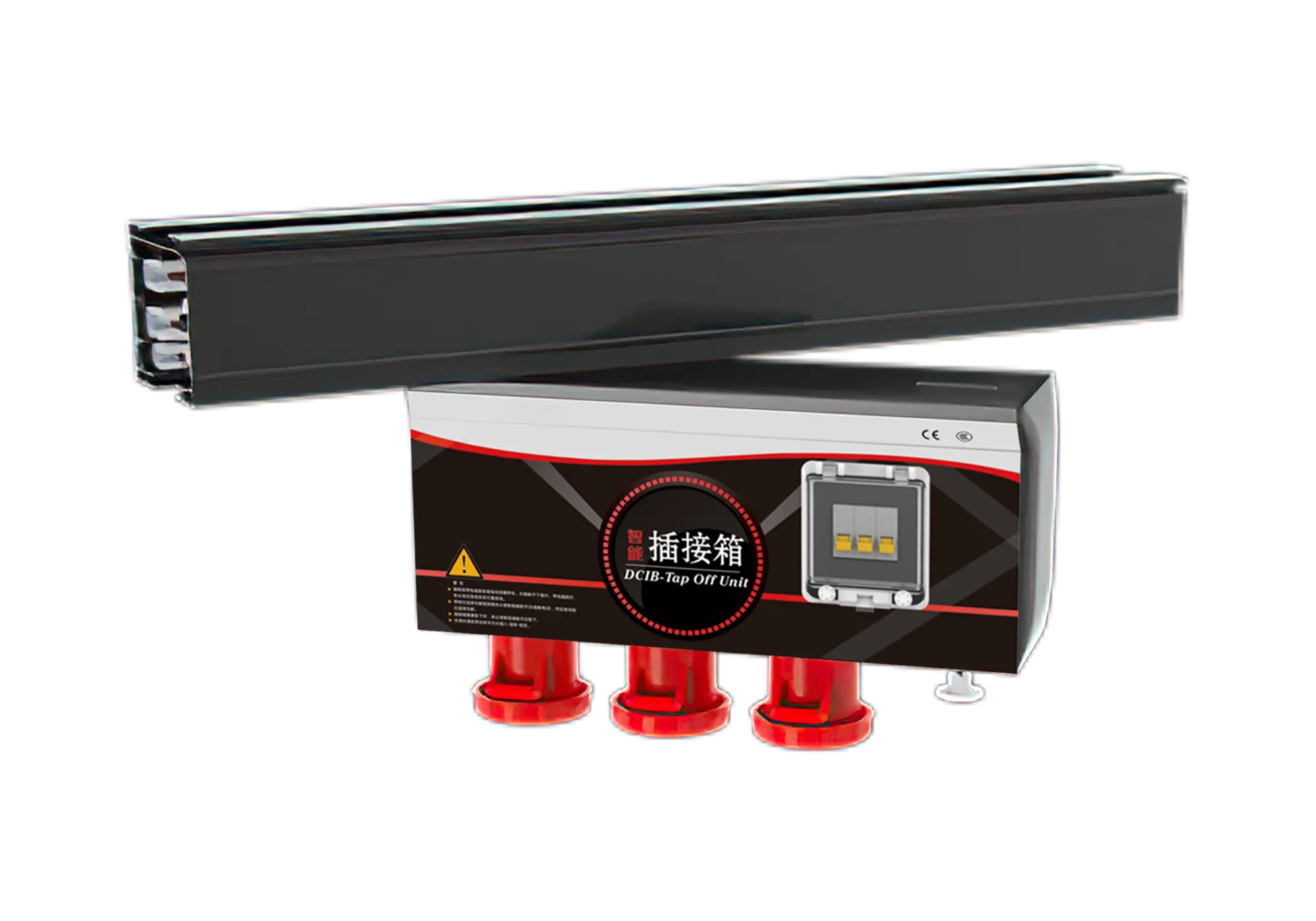

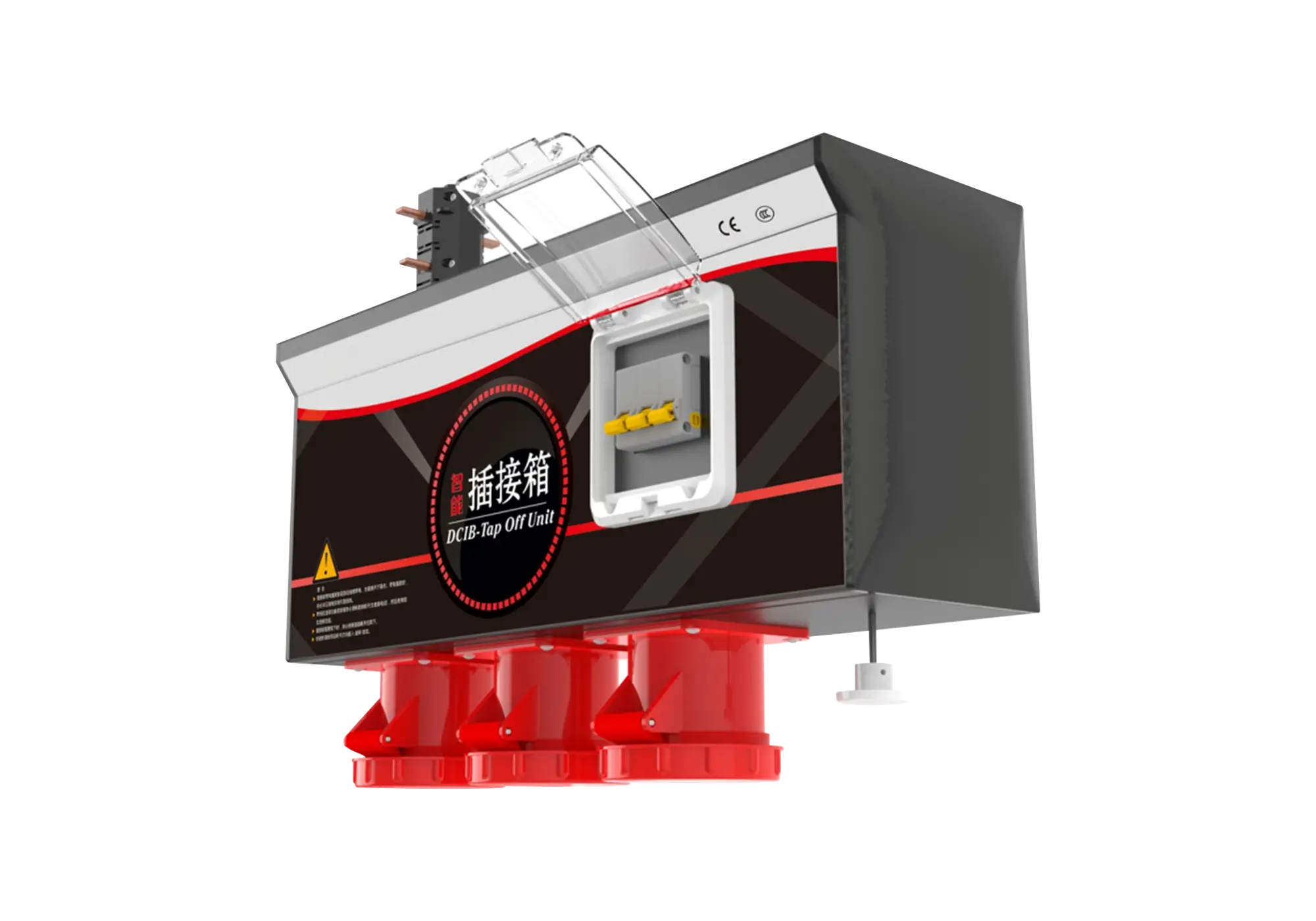

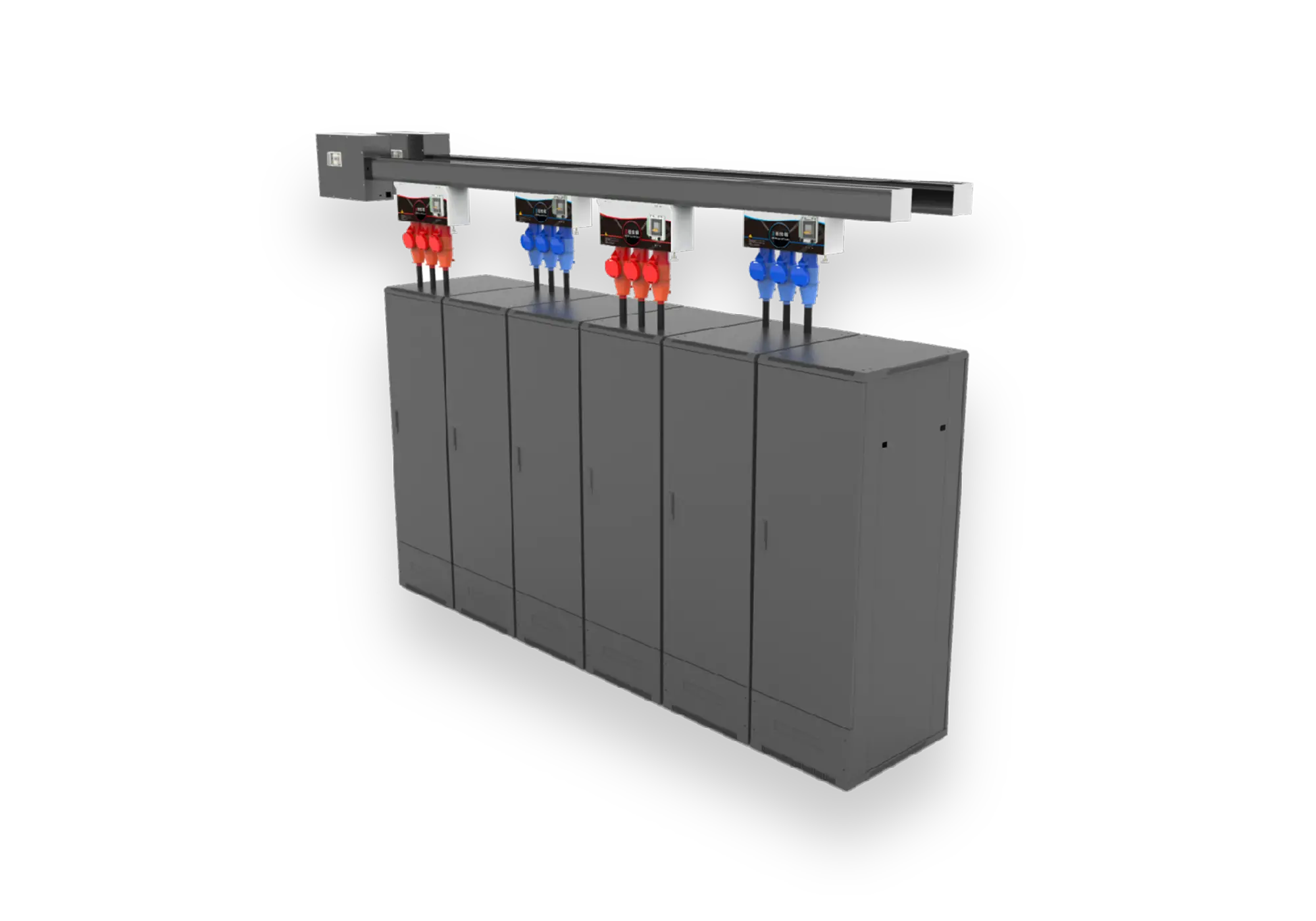

The Sliding Smart Busbar System (DCIB Series) offers a flexible and efficient power distribution solution for modern data centers and industrial facilities. With a current range of 100A to 630A and a maximum protection level...
| Models | Rated Current per Phase | Rated Voltage | IP Rating | Conductor Material | Weight per Meter |
|---|---|---|---|---|---|
| SY-PHS-160 | 160A | 450V | IP54 | T2 Electrolytic Copper | 10kg |
| SY-PHS-225 | 225A | 450V | IP54 | T2 Electrolytic Copper | 10kg |
| SY-PHS-250 | 250A | 450V | IP54 | T2 Electrolytic Copper | 10kg |
| SY-PHS-400 | 400A | 450V | IP54 | T2 Electrolytic Copper | 14kg |
| SY-PHS-630 | 630A | 450V | IP54 | T2 Electrolytic Copper | 21kg |

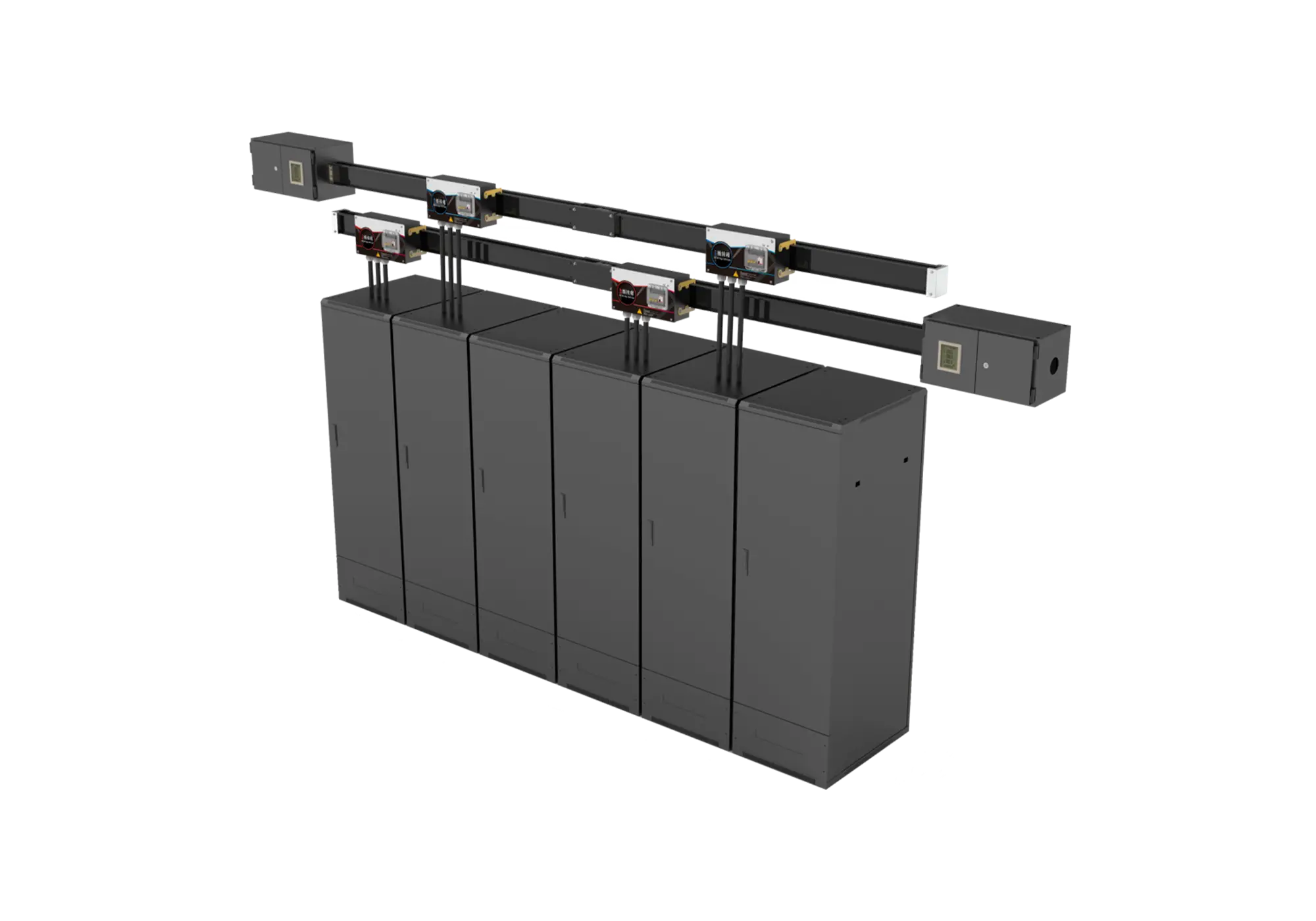

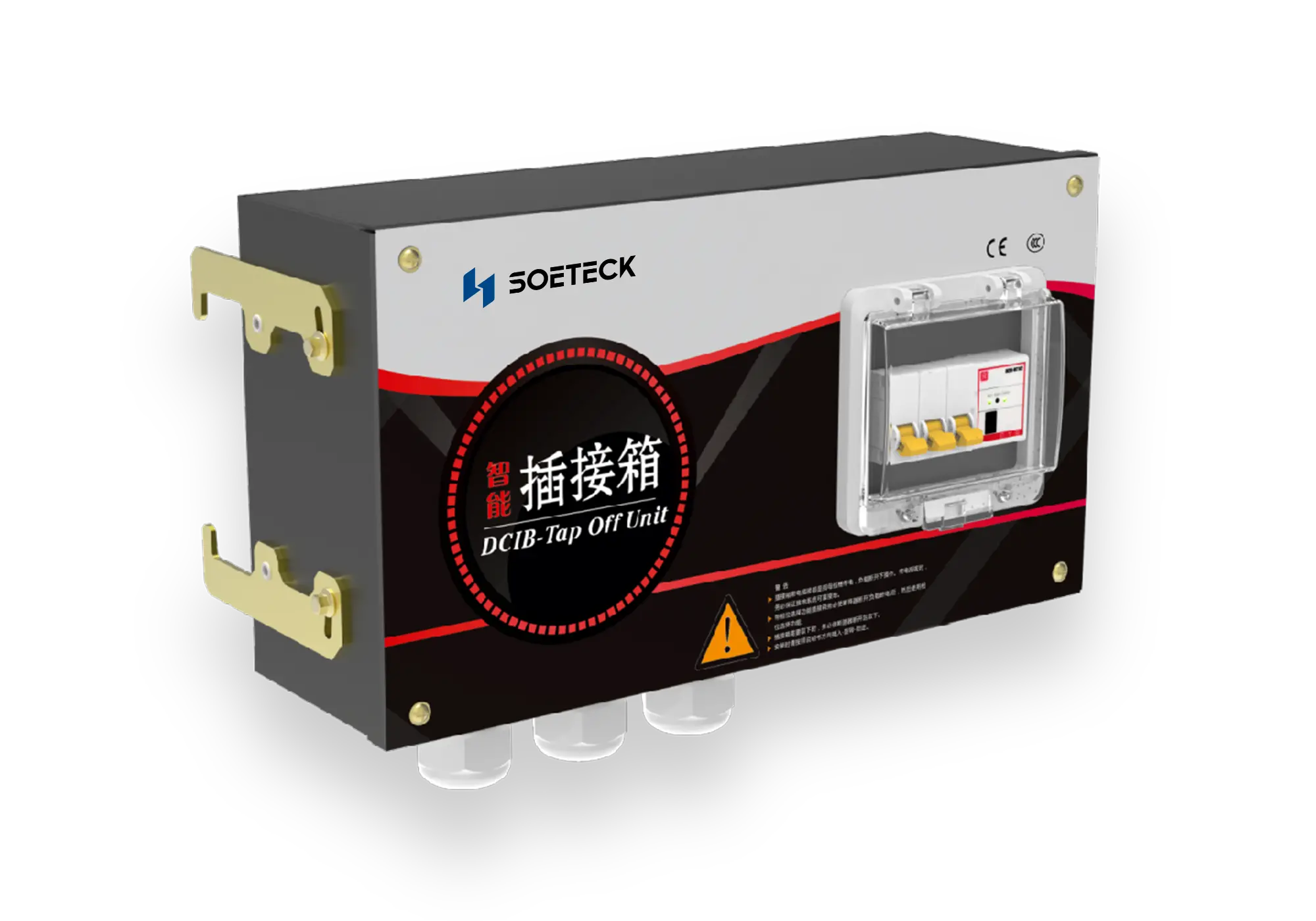

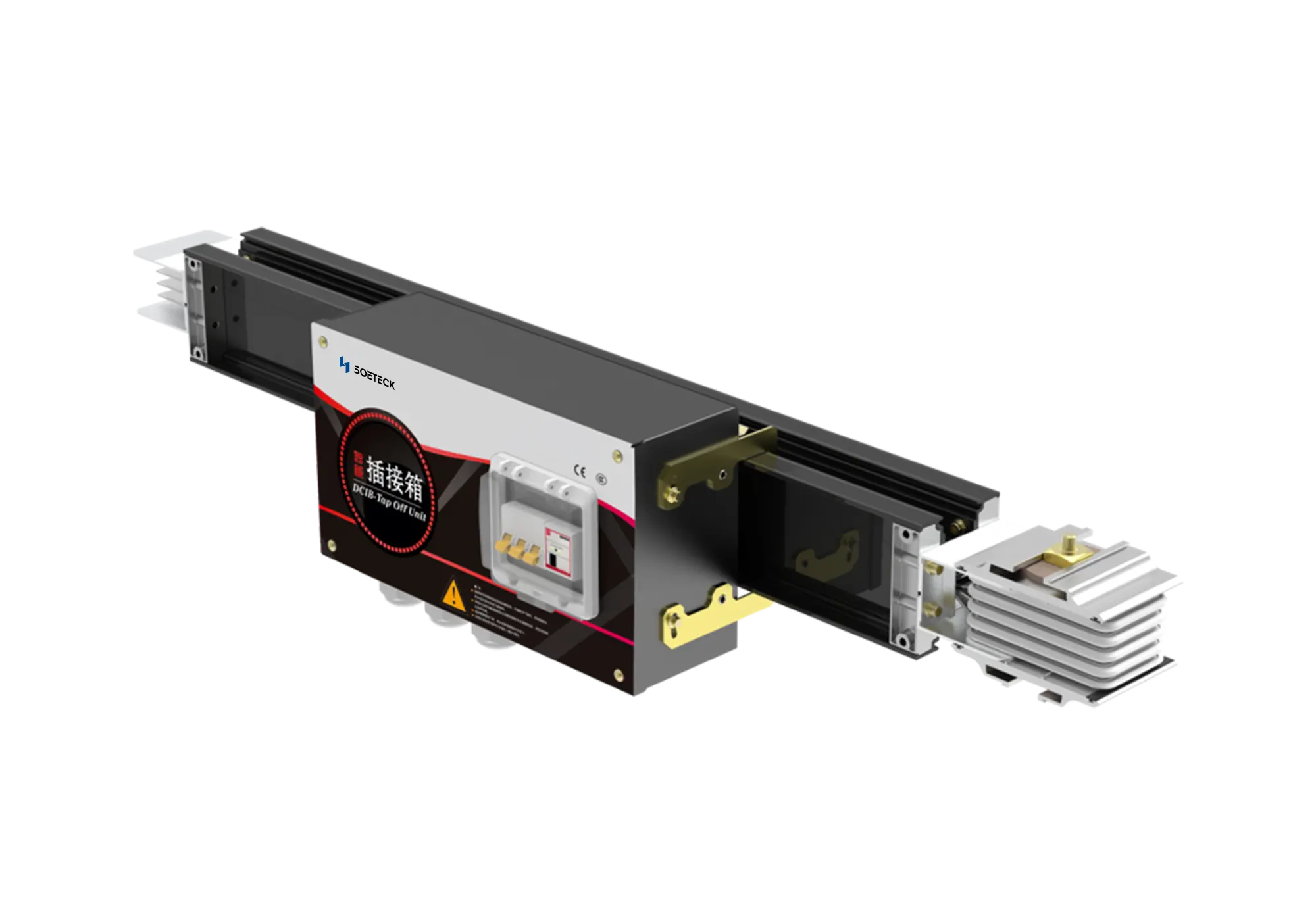

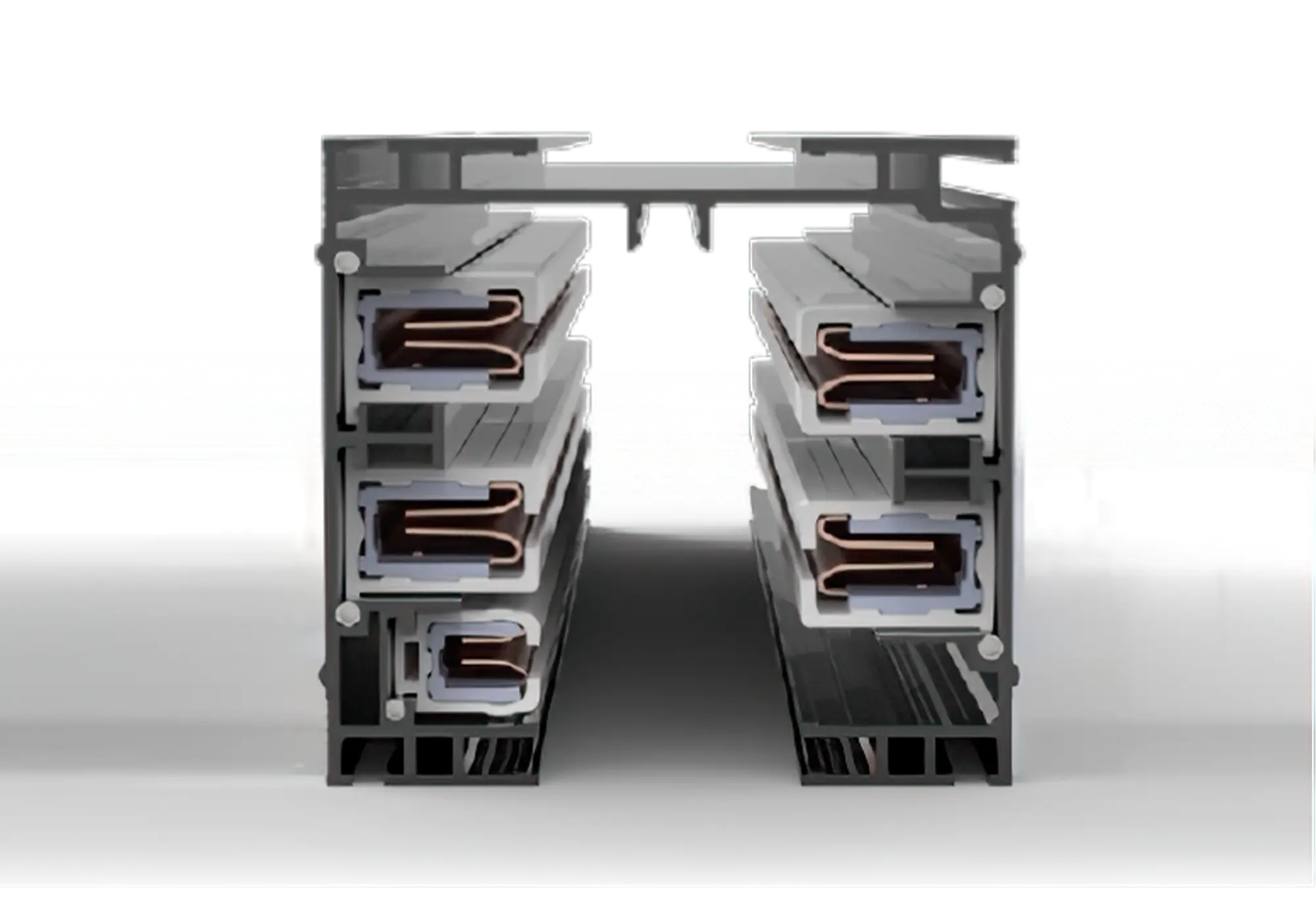

The Fixed Smart Busbar System (DCIBF Series) provides a reliable power distribution solution for environments with stable and high-power demands. With a current range of 100A to 800A and a maximum protection level of IP66,...
| Models | Rated Current per Phase | Rated Voltage | IP Rating | Conductor Material | Weight per Meter |
|---|---|---|---|---|---|
| SY-PHF-160 | 160A | 450V | IP66 | T2 Electrolytic Copper | 10kg |
| SY-PHF-225 | 225A | 450V | IP66 | T2 Electrolytic Copper | 10kg |
| SY-PHF-250 | 250A | 450V | IP66 | T2 Electrolytic Copper | 10kg |
| SY-PHF-400 | 400A | 450V | IP66 | T2 Electrolytic Copper | 14kg |
| SY-PHF-630 | 630A | 450V | IP66 | T2 Electrolytic Copper | 21kg |
| SY-PHF-800 | 800A | 450V | IP66 | T2 Electrolytic Copper | 28kg |
