Uninterruptible Power Supplies

Uninterruptible Power Supplies (UPS) are core components that ensure the continuous operation of critical equipment.
Soeteck‘s UPS systems are characterized by high efficiency and reliability, utilizing advanced technology and intelligent management systems for comprehensive monitoring and management of the power supply.

Showing 1 - 10 of 26 results

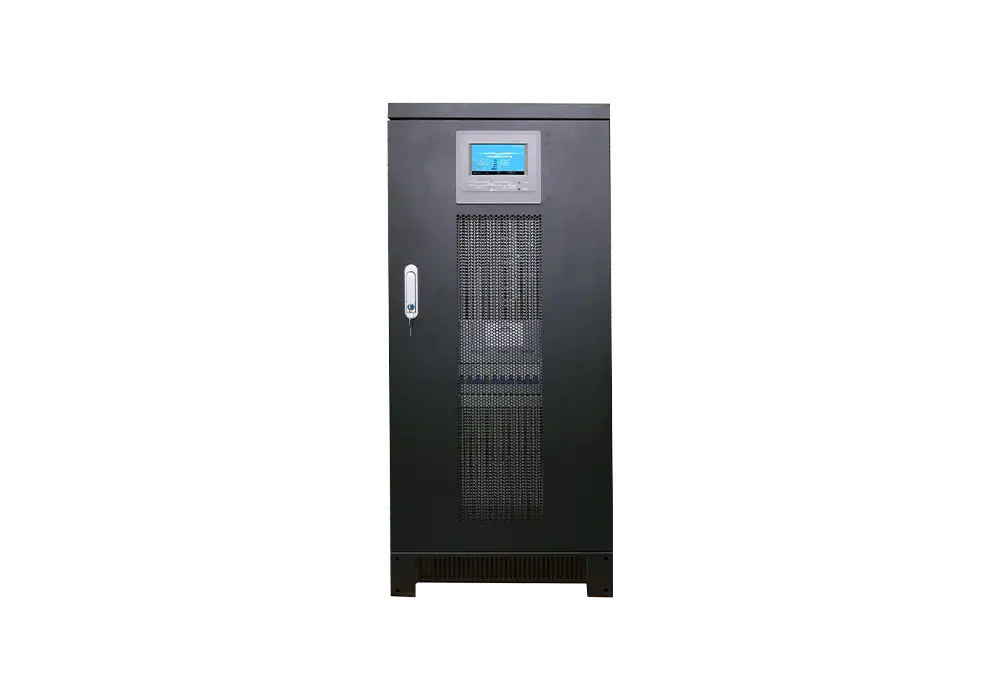

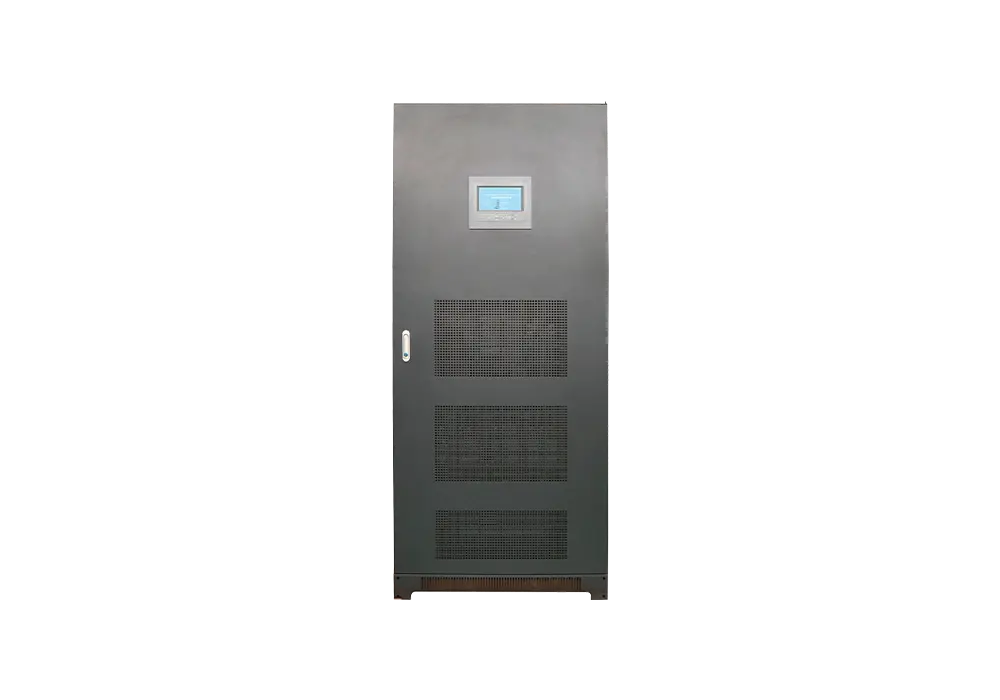

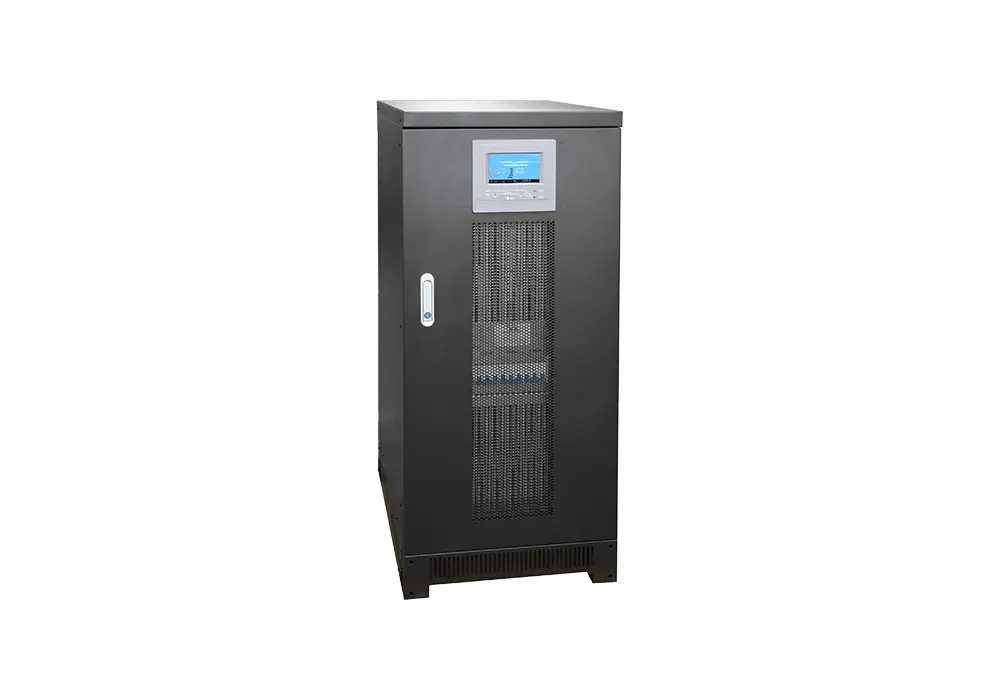

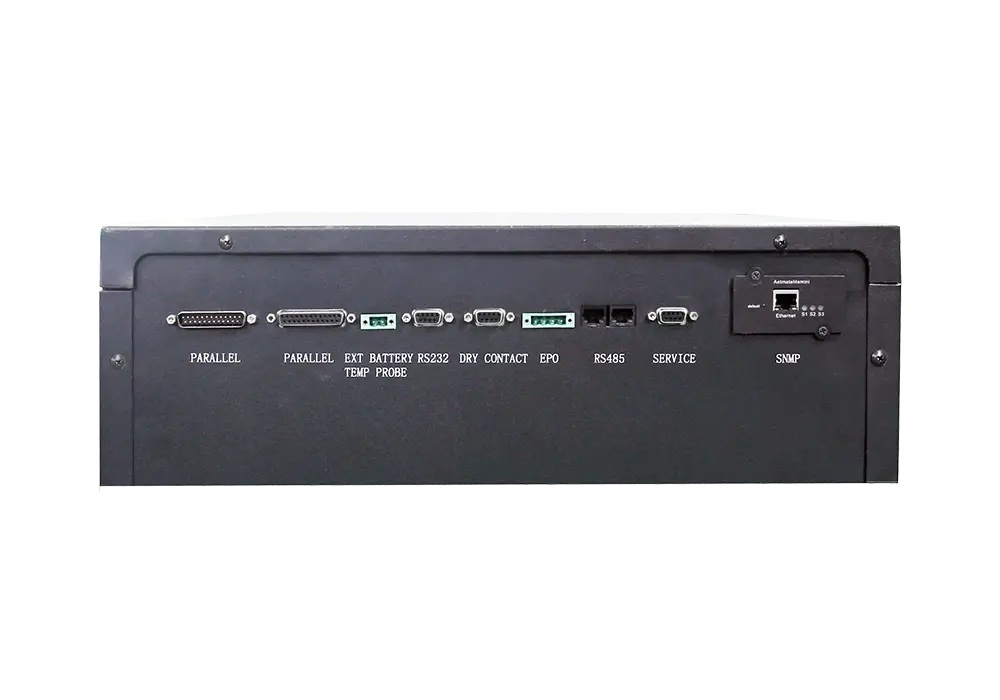

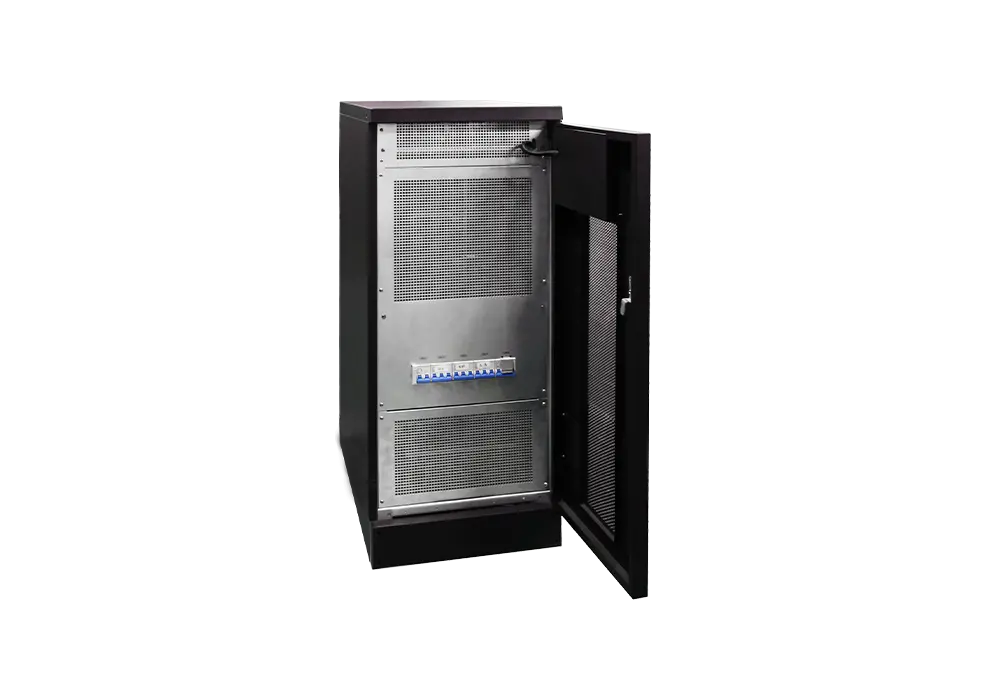

SOETECK Industrial Online UPS 10kVA-200kVA, Low-frequency UPS

The SY-G Series 3 Phase Low Frequency UPS is a high-efficiency industrial power solution, featuring DSP-controlled double conversion technology, IGBT rectifiers, and wide input voltage adaptability. It offers parallel redundancy, a user-friendly LCD interface, and...

Models

Sales Contact View Details

Models

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYG100L33	10kVA / 9kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE
SYG150L33	15kVA / 13.5kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE
SYG200L33	20kVA / 18kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE
SYG300L33	30kVA / 27kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE
SYG400L33	40kVA / 36kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE
SYG600L33	60kVA / 54kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE
SYG800L33	80kVA / 72kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE
SYG1000L33	100kVA / 90kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE
SYG1200L33	120kVA / 108kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE
SYG1600L33	160kVA / 144kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE
SYG2000L33	200kVA / 180kW	285-475VAC	380VAC or 220VAC	90%	3 phase + PE

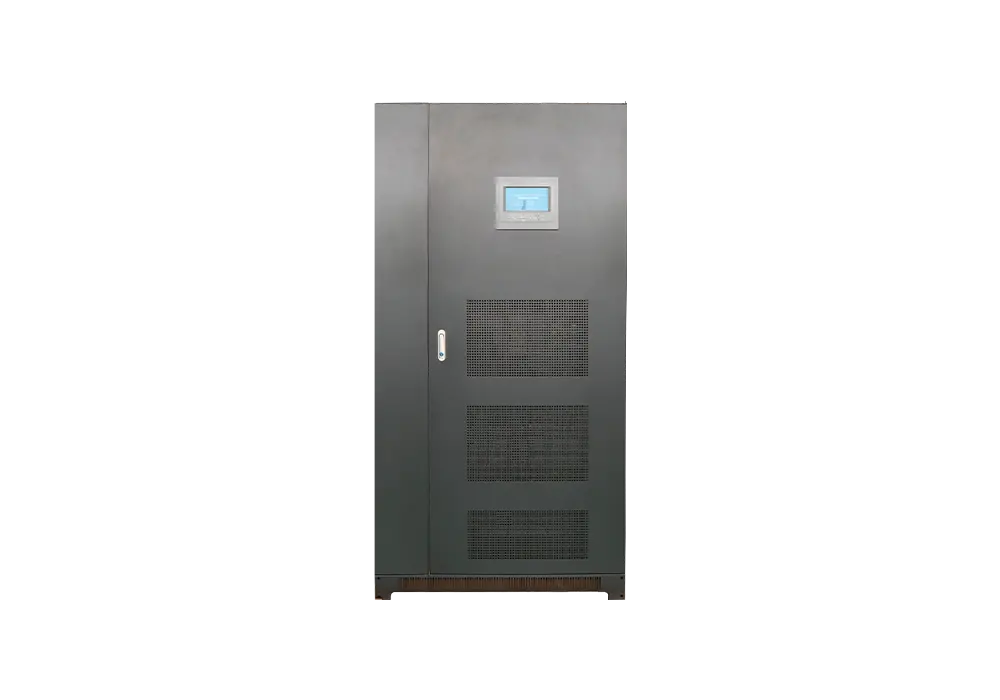

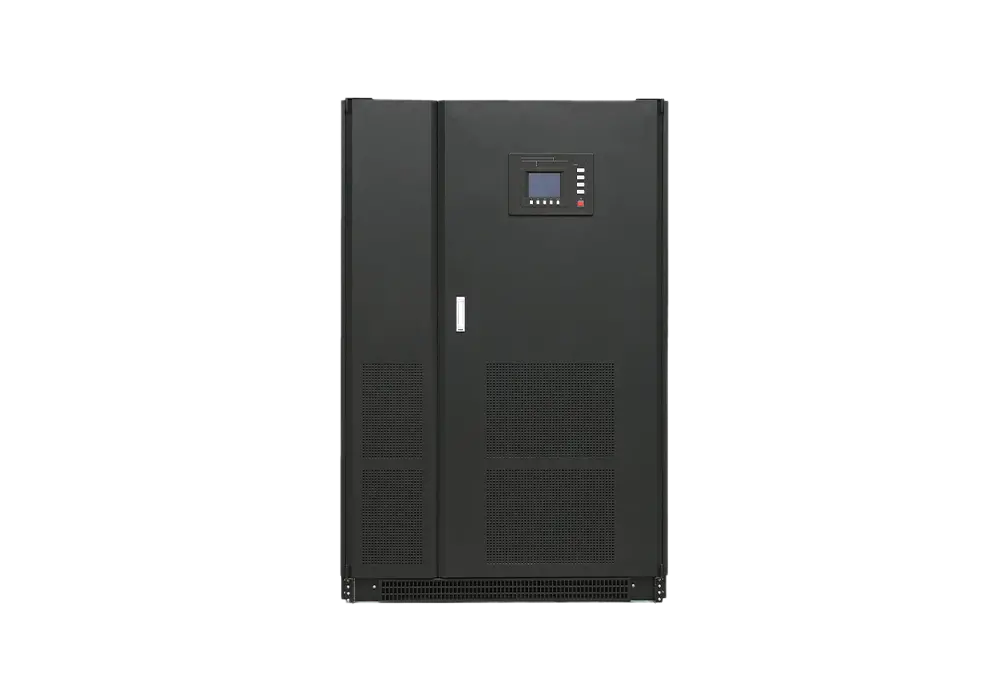

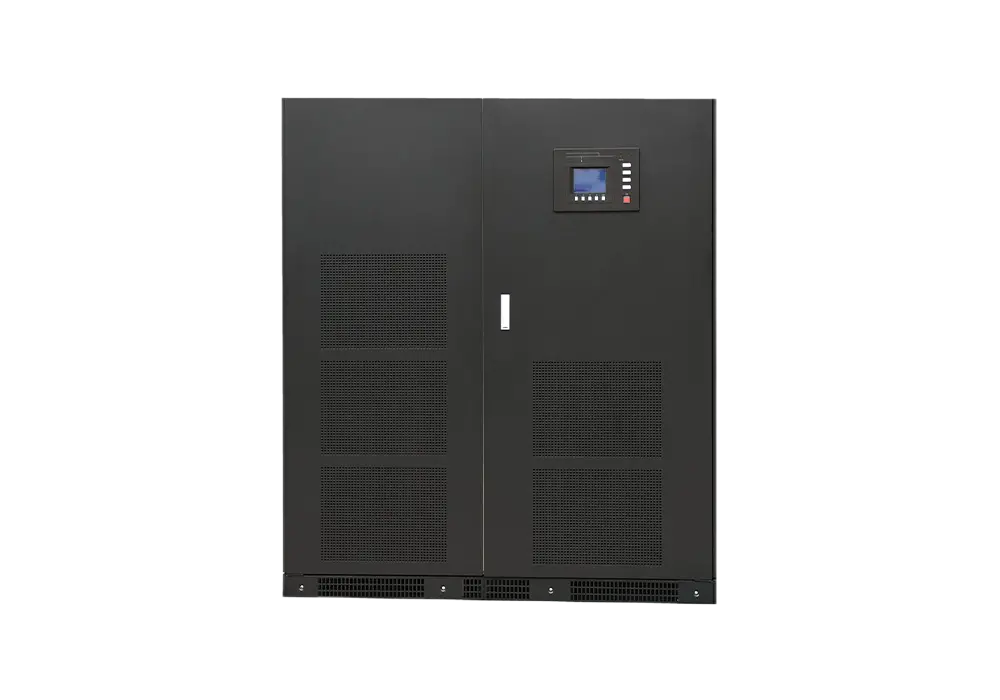

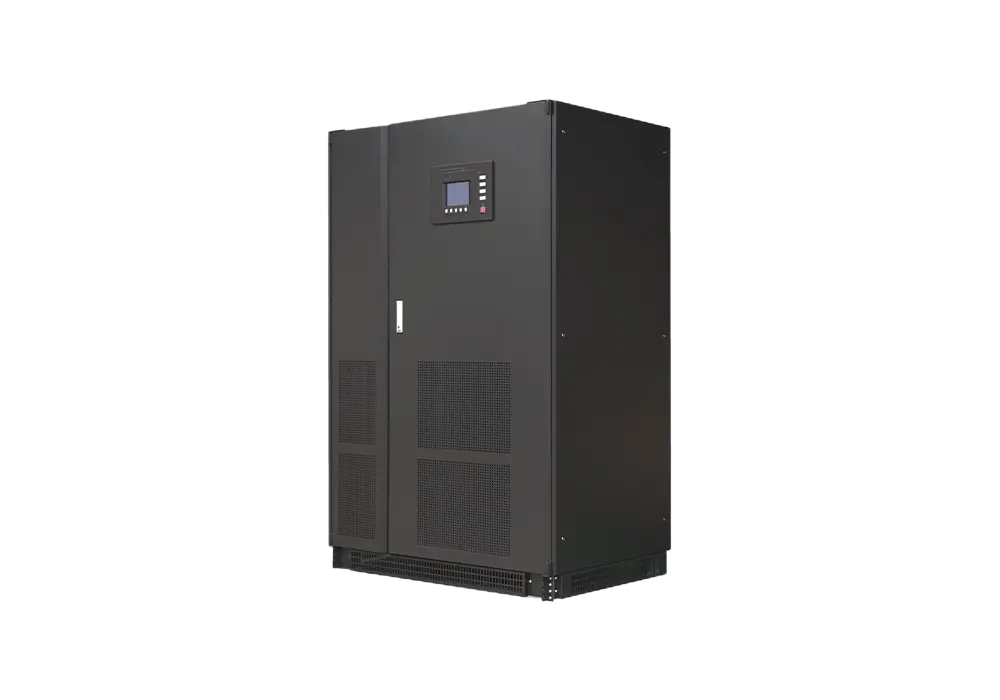

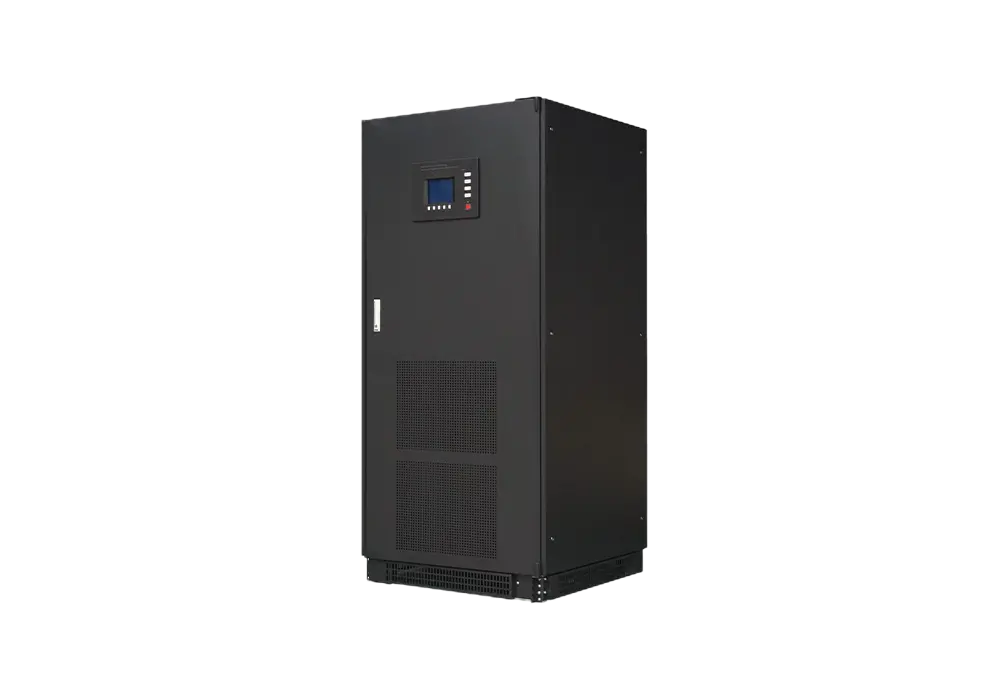

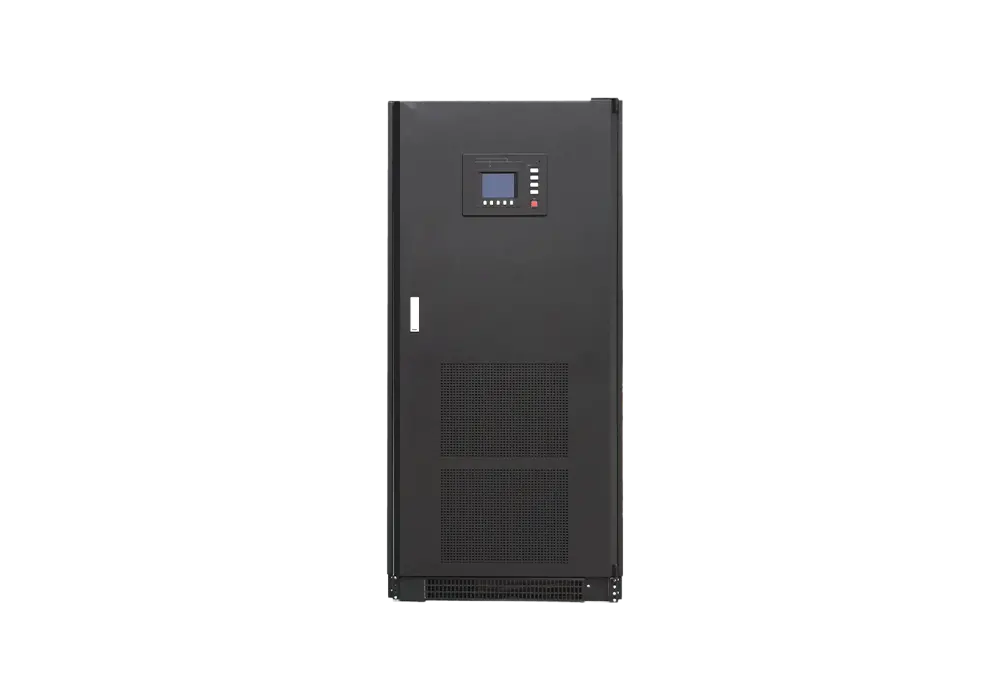

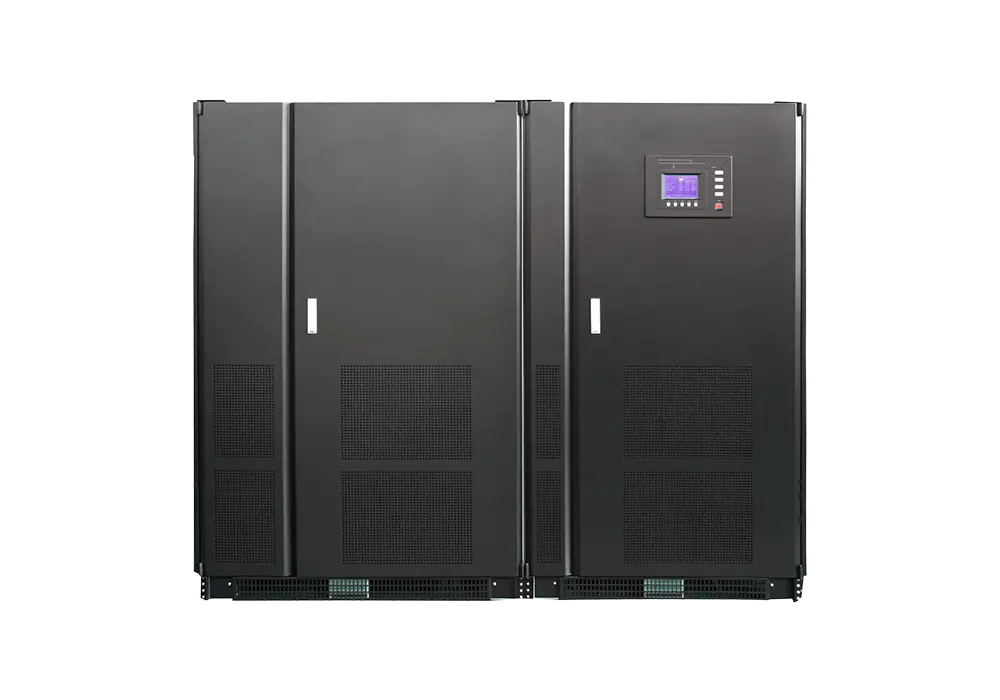

SOETECK Industial Online UPS 160kVA-600kVA, Low-Frequency UPS with filtering function

The SY-G Series 3 Phase LF/Transformer-Based UPS delivers superior power protection with IGBT rectifiers, DSP control modules, and high system efficiency. Featuring parallel redundancy for up to 8 units, it ensures stable, uninterrupted power for...

Models

Sales Contact View Details

Models

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYG1600L33-N	160kVA / 144kW	380/400/415VAC	Line Voltage: 380×（1±1%）VAC or Phase Voltage: 220×（1±1%）VAC	94% ( With Optional Accessories ) ; 98% ( ECO mode )	3 phase + PE
SYG2000L33-N	200kVA / 180kW	380/400/415VAC	Line Voltage: 380×（1±1%）VAC or Phase Voltage: 220×（1±1%）VAC	94% ( With Optional Accessories ) ; 98% ( ECO mode )	3 phase + PE
SYG2500L33-N	250kVA / 225kW	380/400/415VAC	Line Voltage: 380×（1±1%）VAC or Phase Voltage: 220×（1±1%）VAC	94% ( With Optional Accessories ) ; 98% ( ECO mode )	3 phase + PE
SYG3000L33-N	300kVA / 270kW	380/400/415VAC	Line Voltage: 380×（1±1%）VAC or Phase Voltage: 220×（1±1%）VAC	94% ( With Optional Accessories ) ; 98% ( ECO mode )	3 phase + PE
SYG4000L33-N	400kVA / 360kW	380/400/415VAC	Line Voltage: 380×（1±1%）VAC or Phase Voltage: 220×（1±1%）VAC	94% ( With Optional Accessories ) ; 98% ( ECO mode )	3 phase + PE
SYG5000L33-N	500kVA / 450kW	380/400/415VAC	Line Voltage: 380×（1±1%）VAC or Phase Voltage: 220×（1±1%）VAC	94% ( With Optional Accessories ) ; 98% ( ECO mode )	3 phase + PE
SYG6000L33-N	600kVA / 540kW	380/400/415VAC	Line Voltage: 380×（1±1%）VAC or Phase Voltage: 220×（1±1%）VAC	94% ( With Optional Accessories ) ; 98% ( ECO mode )	3 phase + PE

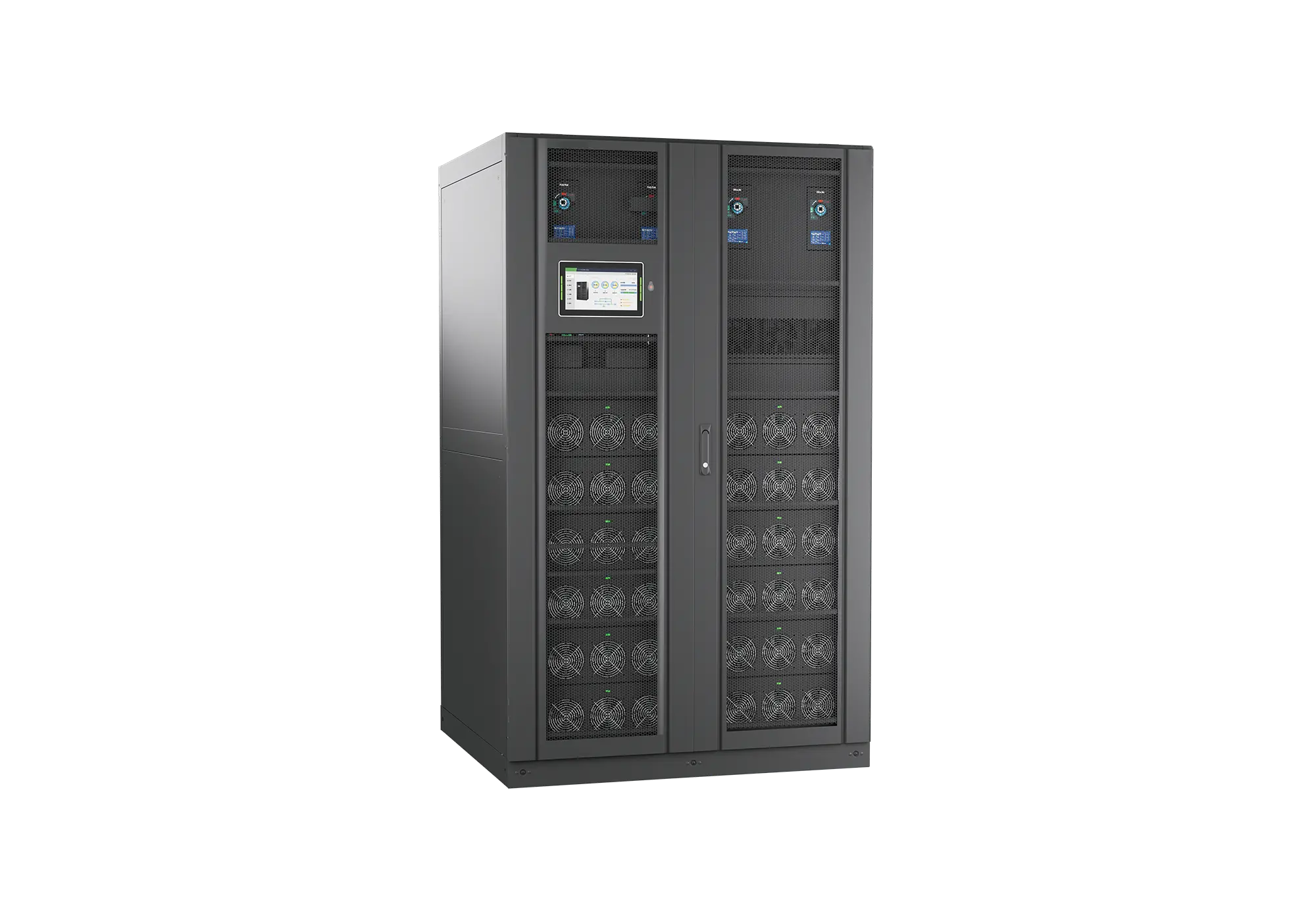

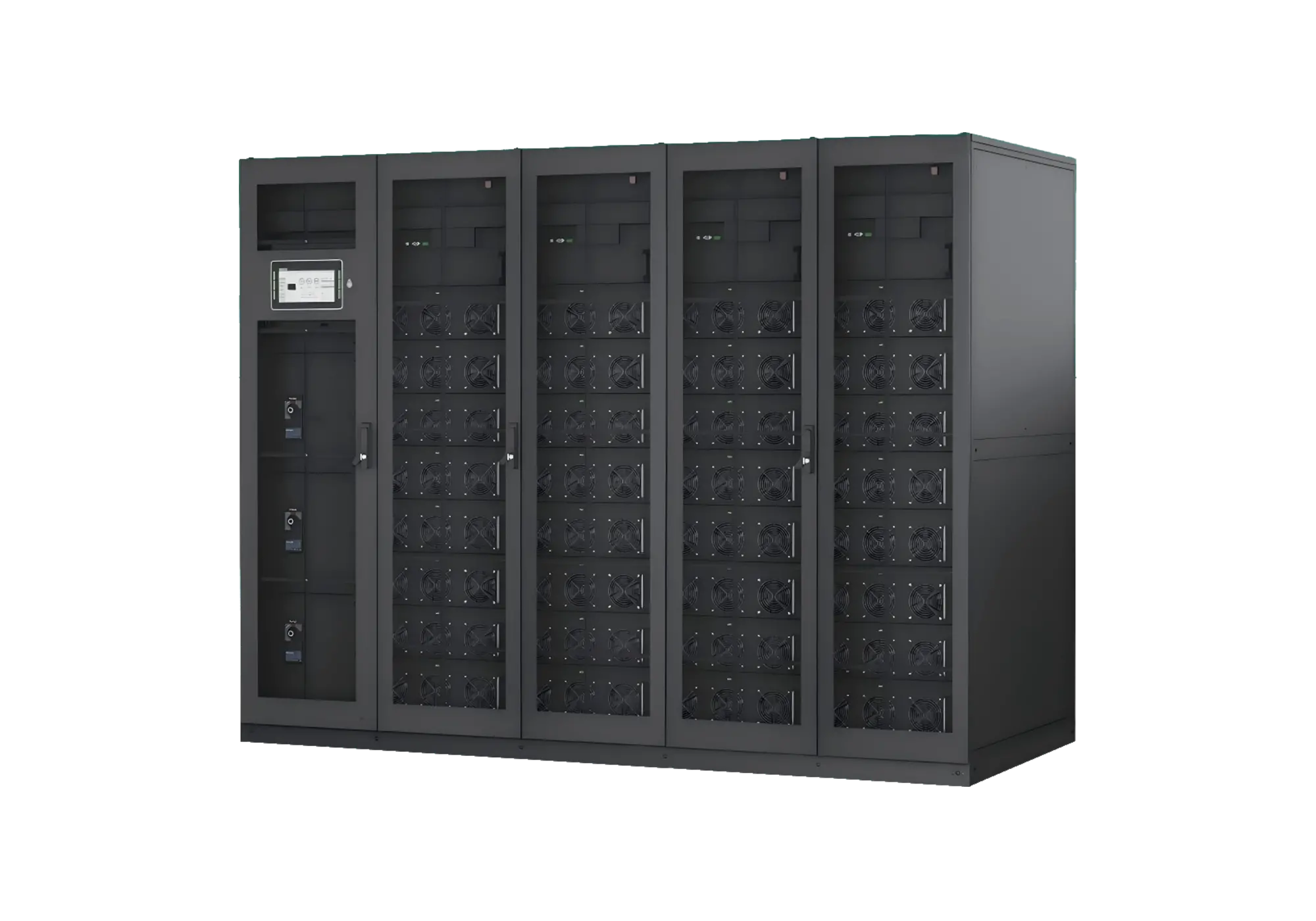

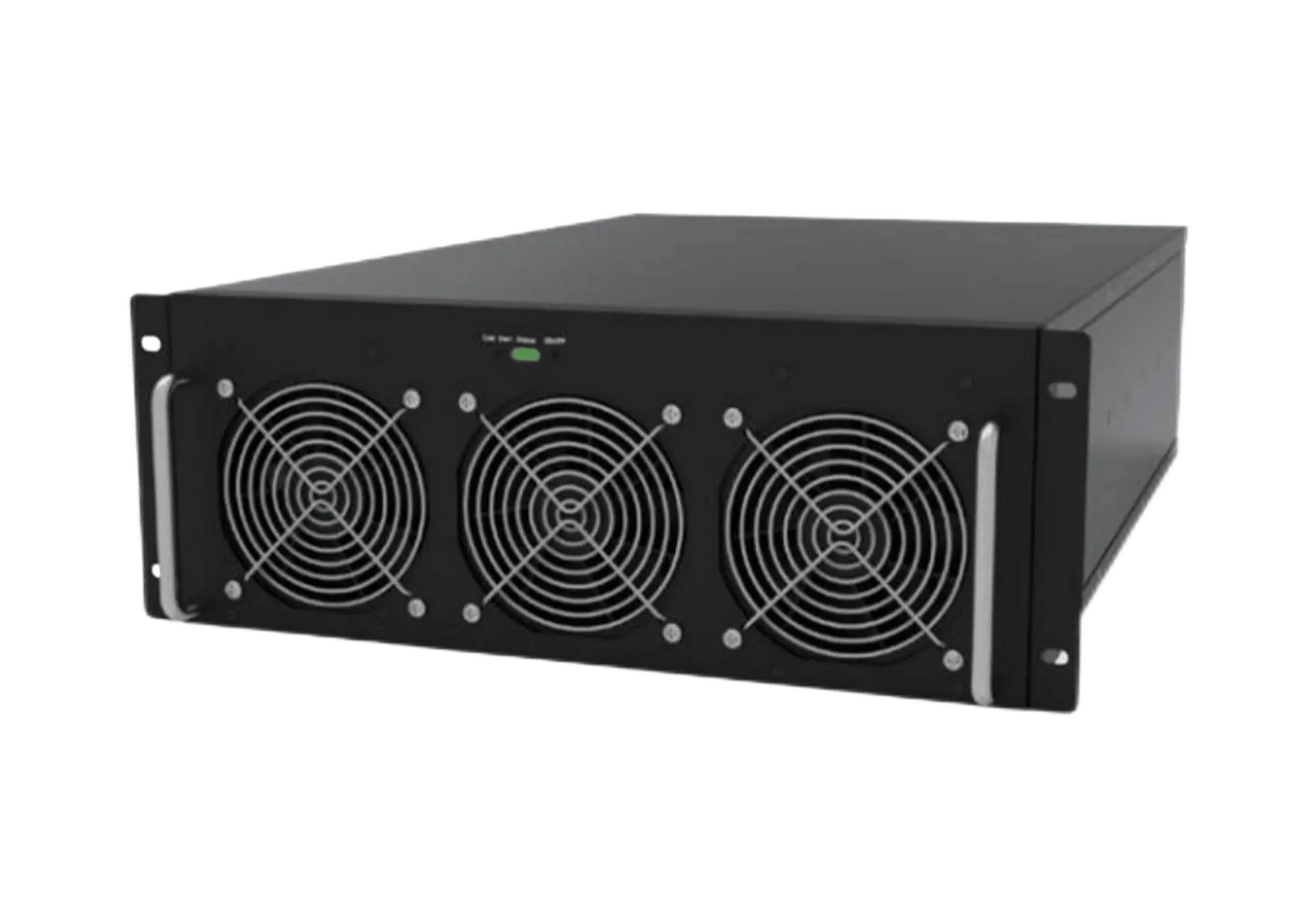

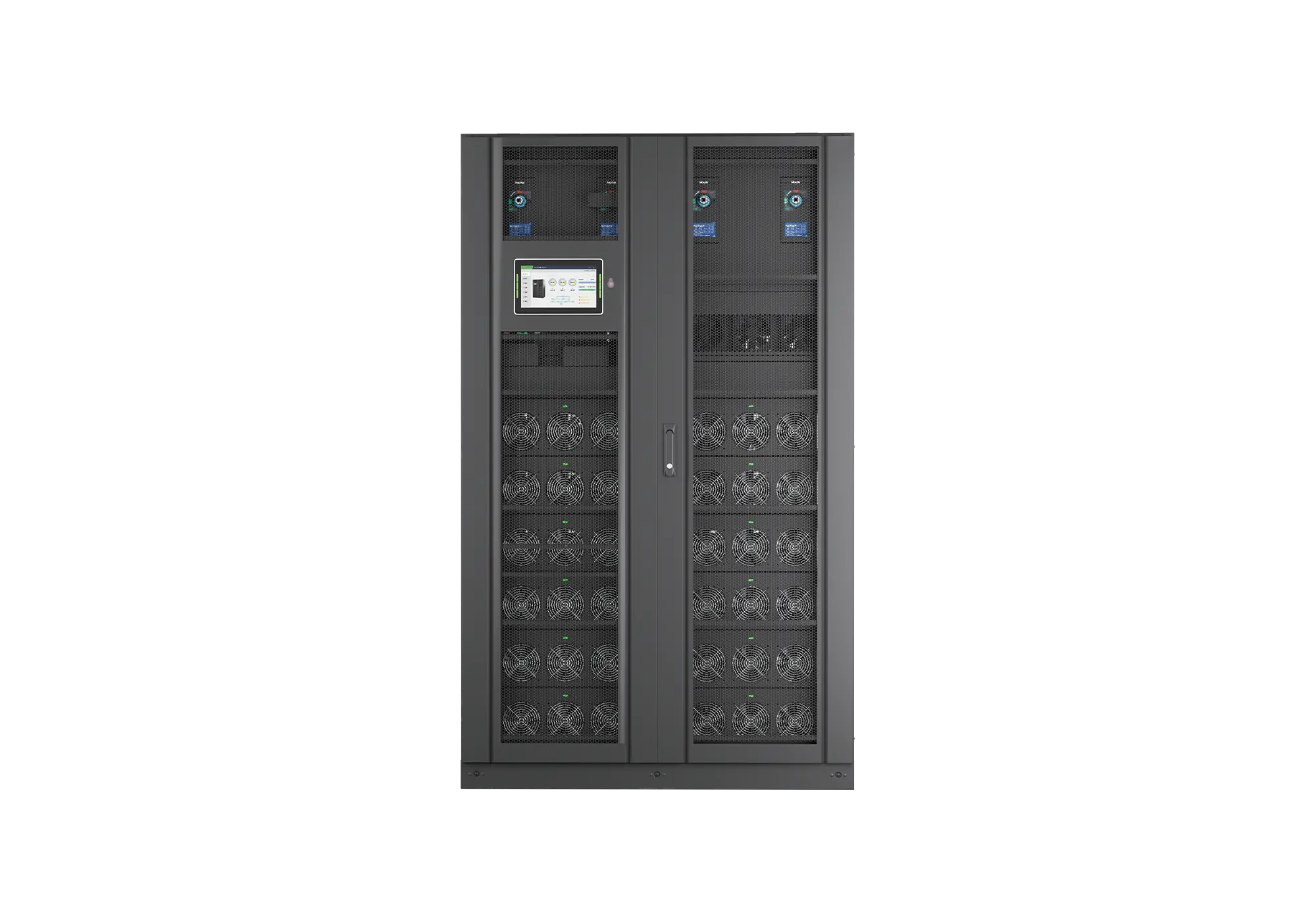

Soeteck SY-T Online High-frequency UPS, PF1, 400-2000kVA -2

Soeteck SY-T Online High-frequency UPS, PF1, 400-2000kVA -4

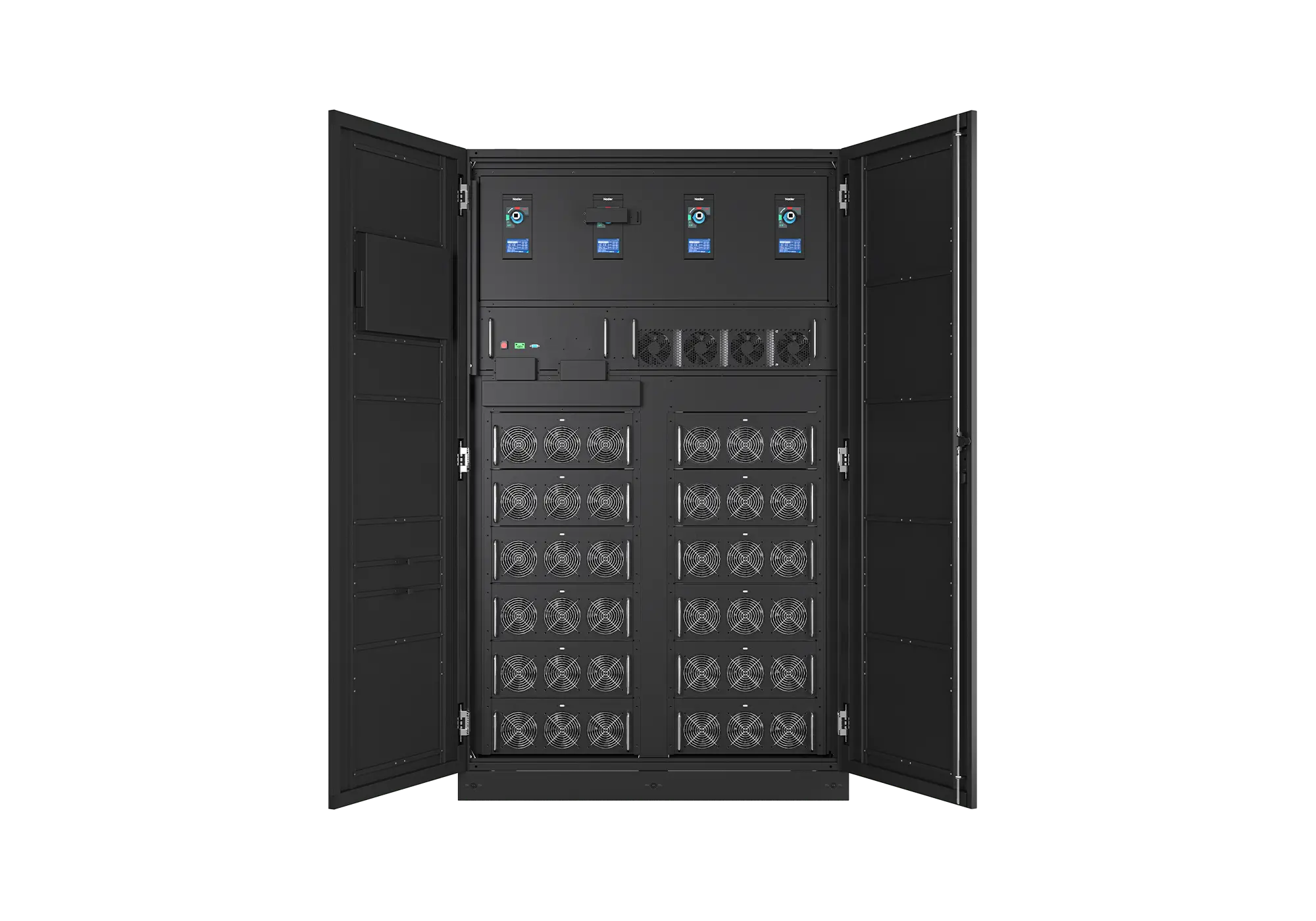

Soeteck SY-T Online High-frequency UPS, PF1, 400-2000kVA -5

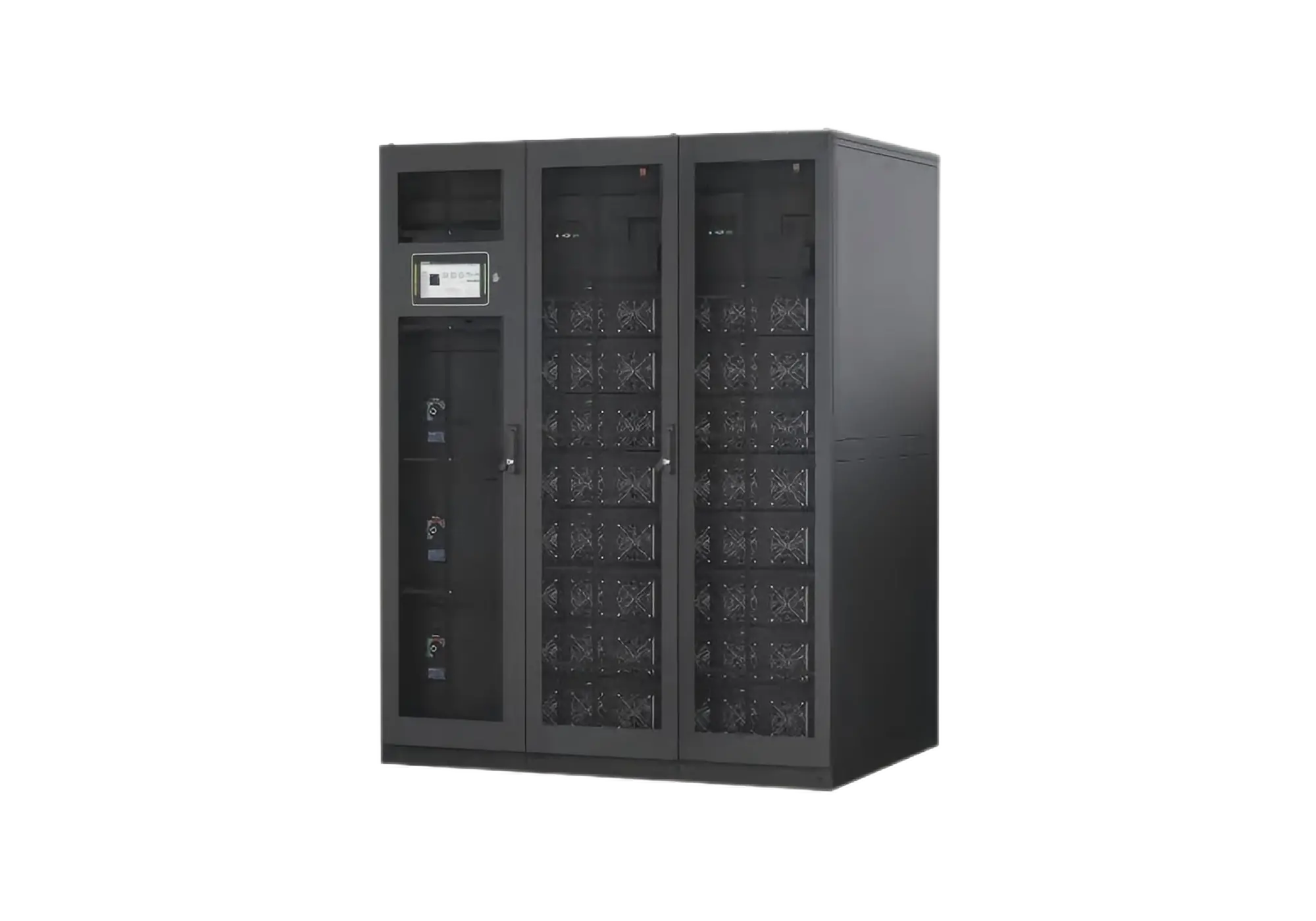

Soeteck SY-T Online High-frequency UPS, PF1, 400-2000kVA -1

Soeteck SY-T Online High-frequency UPS, PF1, 400-2000kVA -7

Soeteck SY-T Online High-frequency UPS, PF1, 400-2000kVA -6

SOETECK High-frequency Online UPS, 400kVA-2000kVA, Tower, PF1, True Double Conversion

The SOETECK SY-T Series UPS, Online High-frequency UPS, 400kVA-2000kVA, Tower, PF1, True Double Conversion offers unparalleled power protection for mission-critical systems. With a three-phase input/output design, 98.5% efficiency in ECO mode, and flexible battery configurations,...

Models

Sales Contact View Details

Models

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYT400	400kVA / 400kVA	304~478VAC (Line Voltage) full load; 304~228VAC (Line Voltage) load derated linearly from 100% to 75%	380/400/415 VAC ( Line voltage ); 220/230/240 VAC ( Phase voltage )	≥ 97% ( Normal mode ); ≥ 98% ( ECO model ) ; ≥ 97% ( Battery mode )	3 phase in, 3 phase out
SYT500	500kVA / 500kVA	304~478VAC (Line Voltage) full load; 304~228VAC (Line Voltage) load derated linearly from 100% to 75%	380/400/415 VAC ( Line voltage ); 220/230/240 VAC ( Phase voltage )	≥ 97% ( Normal mode ); ≥ 98% ( ECO model ) ; ≥ 97% ( Battery mode )	3 phase in, 3 phase out
SYT600	600kVA / 600kVA	304~478VAC (Line Voltage) full load; 304~228VAC (Line Voltage) load derated linearly from 100% to 75%	380/400/415 VAC ( Line voltage ); 220/230/240 VAC ( Phase voltage )	≥ 97% ( Normal mode ); ≥ 98% ( ECO model ) ; ≥ 97% ( Battery mode )	3 phase in, 3 phase out
SYT1000	1000kVA / 1000kW	304~478VAC (Line Voltage) full load; 304~228VAC (Line Voltage) load derated linearly from 100% to 75%	380/400/415 VAC ( Line voltage ); 220/230/240 VAC ( Phase voltage )	≥ 97% ( Normal mode ); ≥ 98% ( ECO model ) ; ≥ 97% ( Battery mode )	3 phase in, 3 phase out
SYT1500	1500kVA / 1500kW	304~478VAC (Line Voltage) full load; 304~228VAC (Line Voltage) load derated linearly from 100% to 75%	380/400/415 VAC ( Line voltage ); 220/230/240 VAC ( Phase voltage )	≥ 97% ( Normal mode ); ≥ 98% ( ECO model ) ; ≥ 97% ( Battery mode )	3 phase in, 3 phase out
SYT2000	2000kVA / 2000kW	304~478VAC (Line Voltage) full load; 304~228VAC (Line Voltage) load derated linearly from 100% to 75%	380/400/415 VAC ( Line voltage ); 220/230/240 VAC ( Phase voltage )	≥ 97% ( Normal mode ); ≥ 98% ( ECO model ) ; ≥ 97% ( Battery mode )	3 phase in, 3 phase out

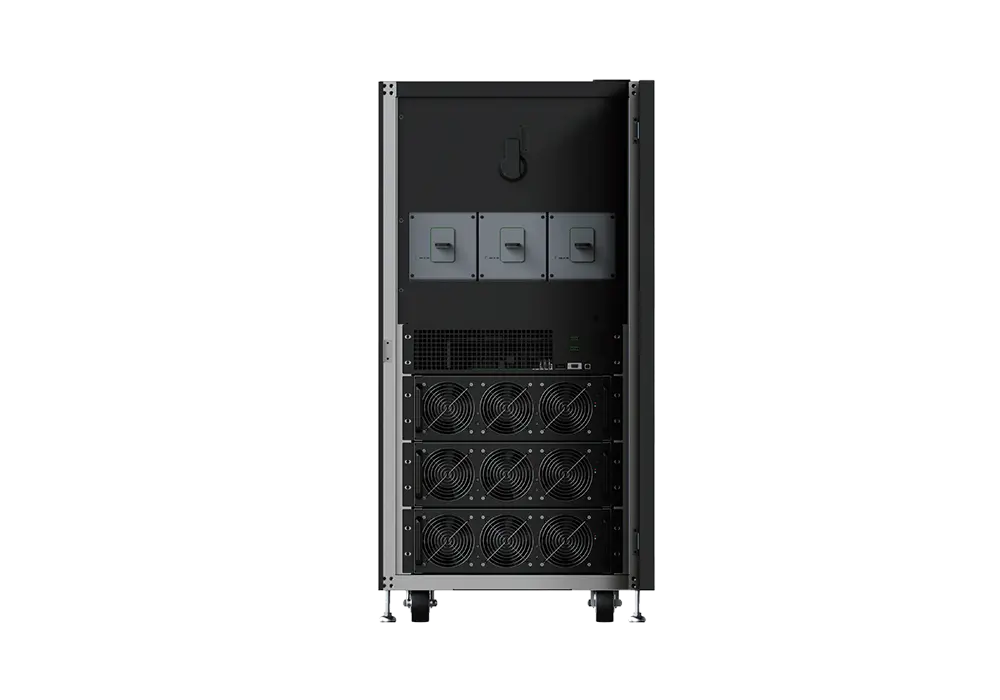

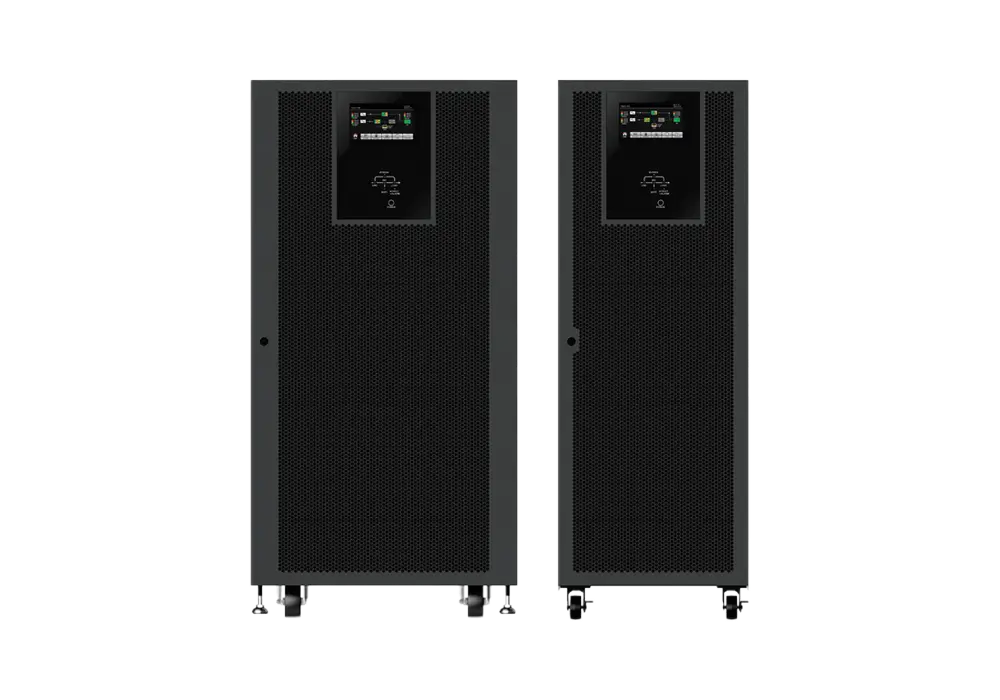

Soeteck SY-T Online High-frequency UPS, PF1, 80-120kVA -1

Soeteck SY-T Online High-frequency UPS, PF1, 80-120kVA -7

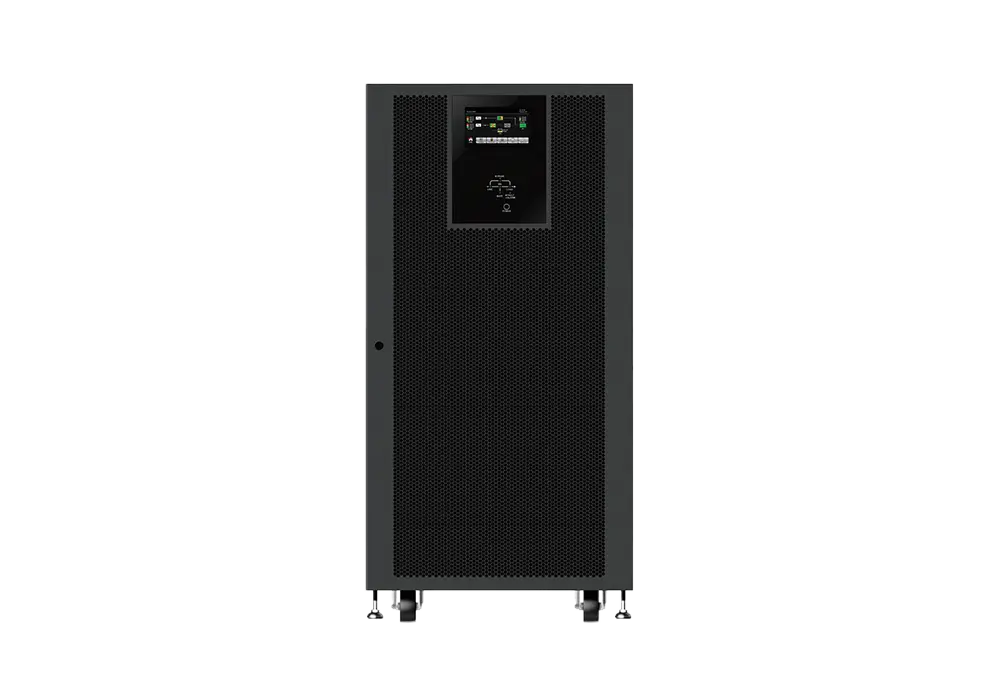

Soeteck SY-T Online High-frequency UPS, PF1, 80-120kVA -5

Soeteck SY-T Online High-frequency UPS, PF1, 80-120kVA -6

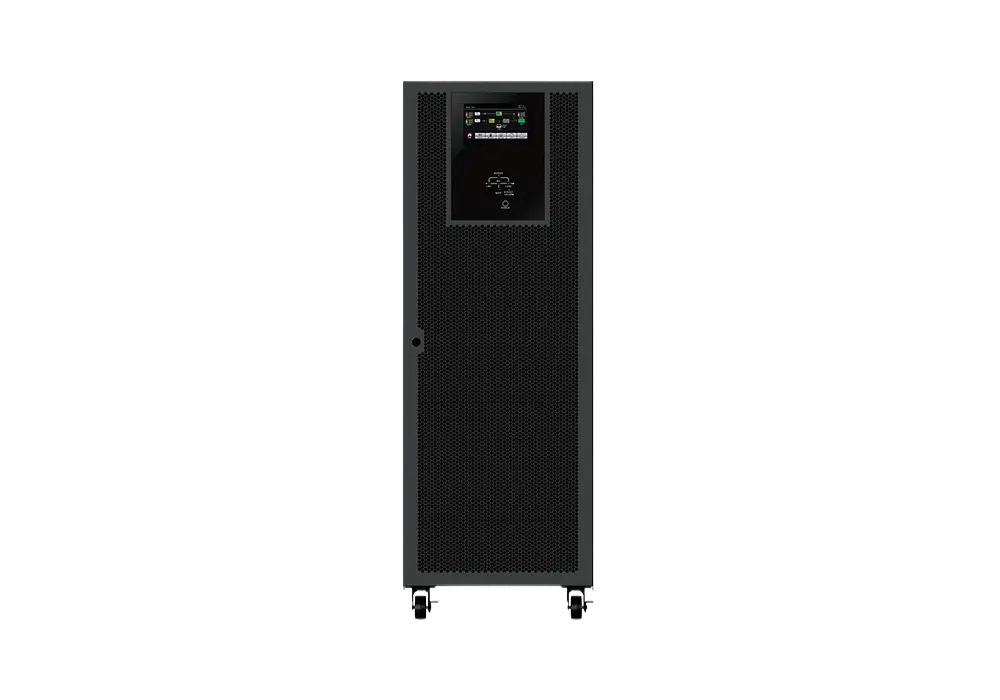

Soeteck SY-T Online High-frequency UPS, PF1, 80-120kVA -2

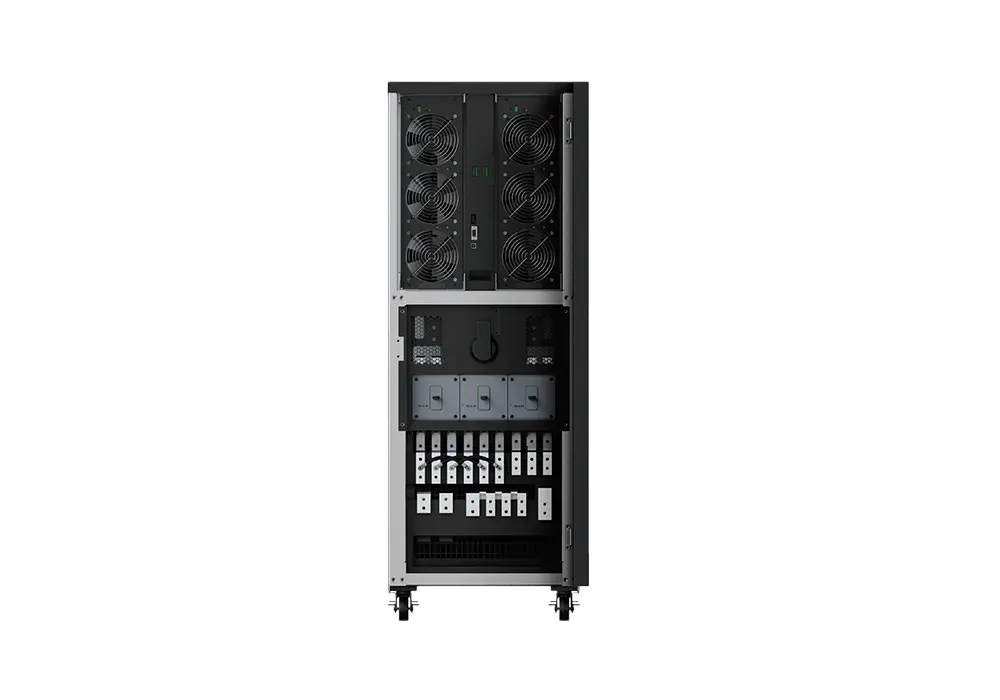

Soeteck SY-T Online High-frequency UPS, PF1, 80-120kVA -4

SOETECK High-frequency Online UPS, 100-300kVA, Tower, PF1

The SOETECK SY-T Series Online High-frequency UPS, 100-300kVA, Tower, PF1 provides reliable, energy-efficient power protection for critical systems. Supporting three-phase input and output, it delivers a wide input voltage range of 110-300V and up to...

Models

Sales Contact View Details

Models

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYT100kVA	100kVA / 100kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out
SYT120kVA	120kVA / 120kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out
SYT180kVA	180kVA / 180kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out
SYT200kVA	200kVA / 200kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out
SYT240kVA	240kVA / 240kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out
SYT300kVA	300kVA / 300kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out

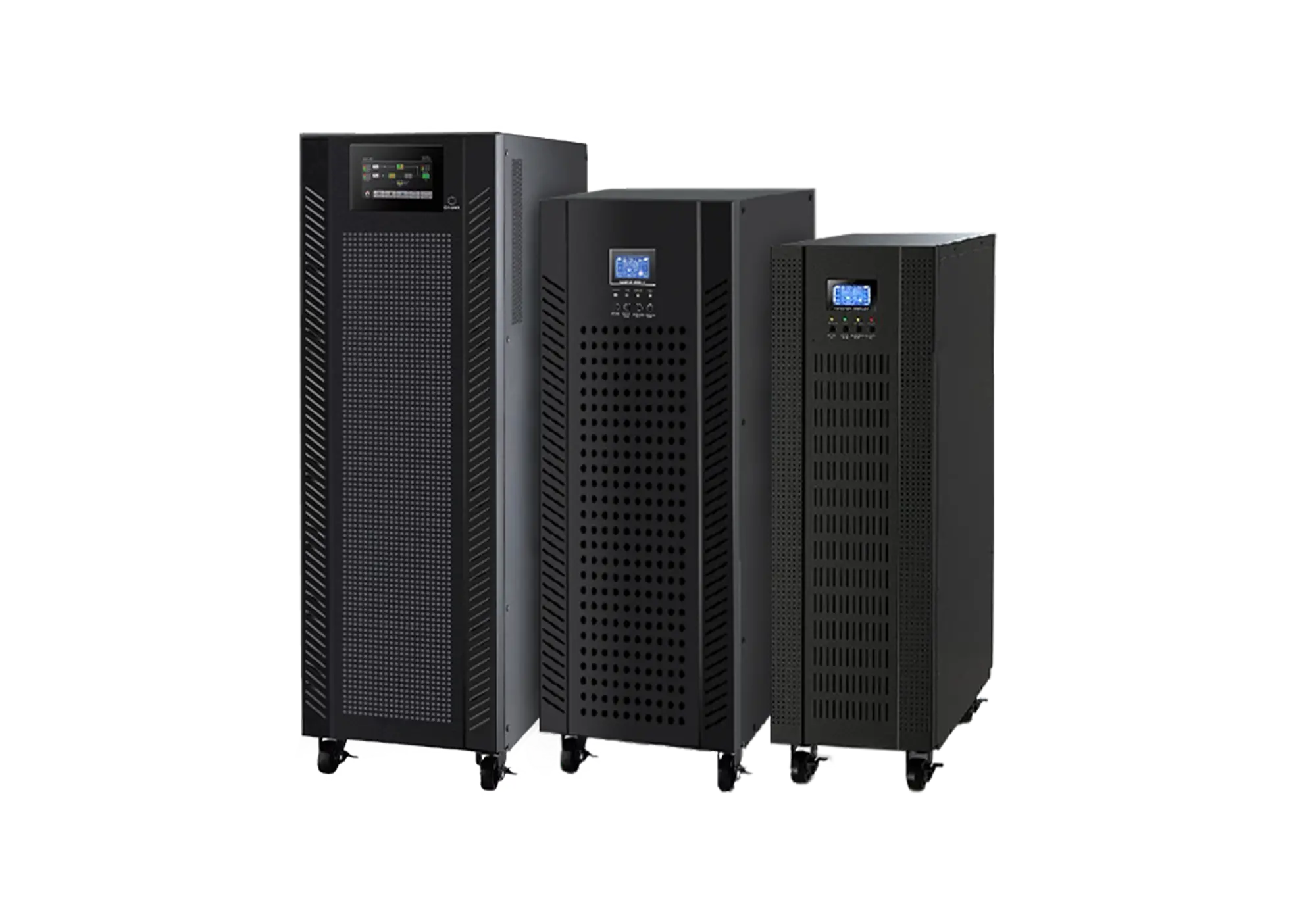

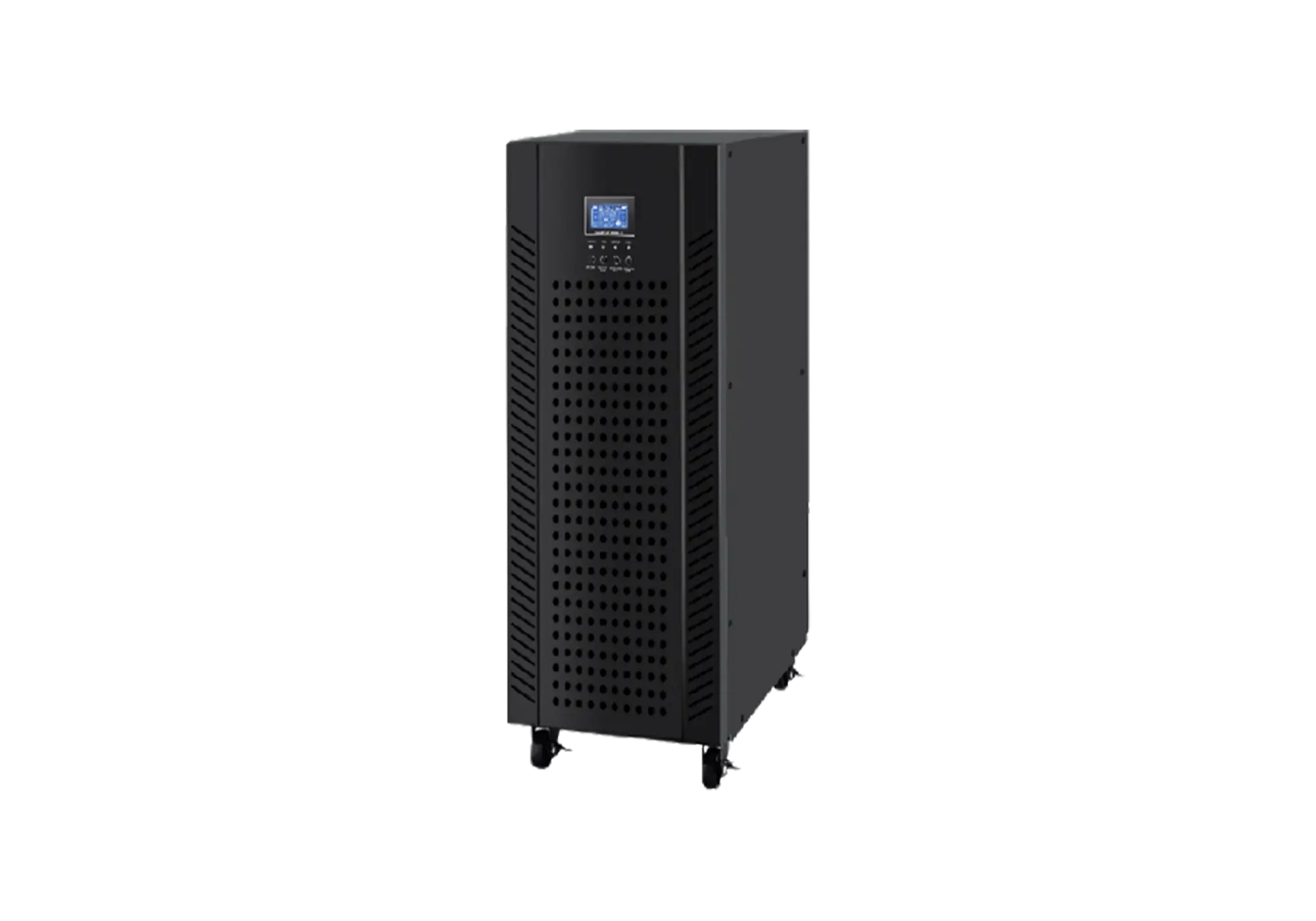

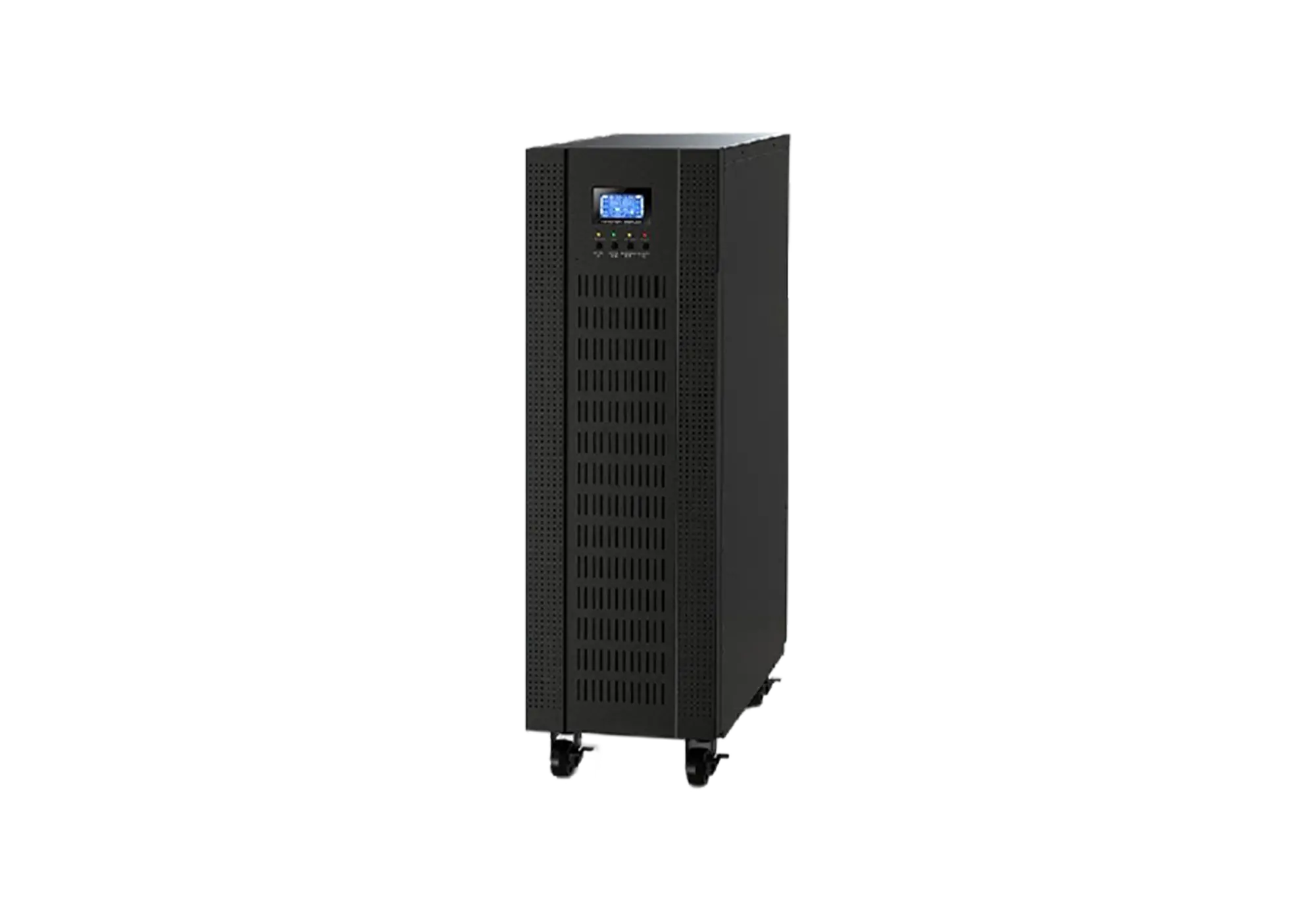

Soeteck SY-T Online High-frequency UPS, PF1, 10-60kVA -1

Soeteck SY-T Online High-frequency UPS, PF1, 10-60kVA -2

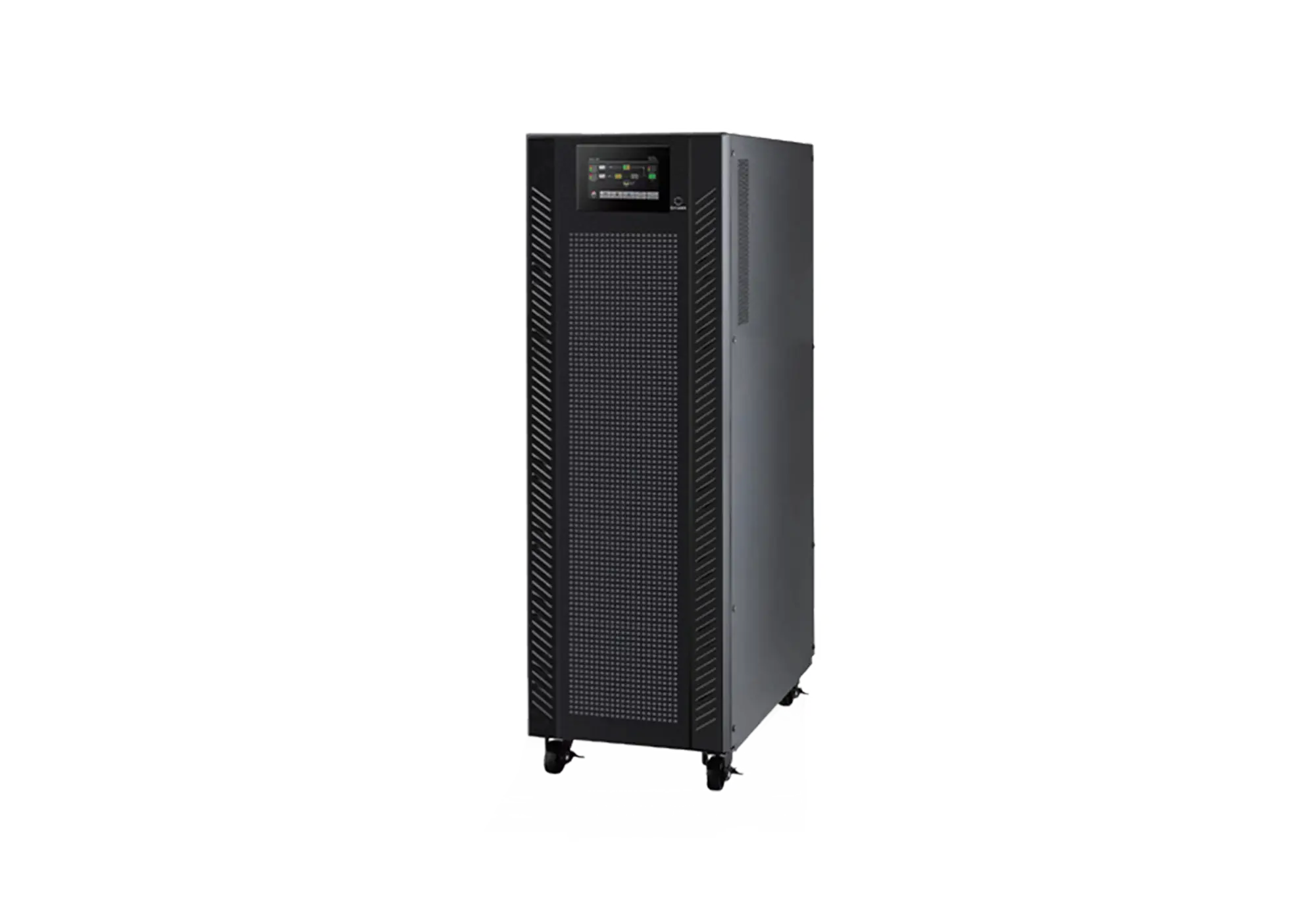

Soeteck SY-T Online High-frequency UPS, PF1, 10-60kVA -3

Soeteck SY-T Online High-frequency UPS, PF1, 10-60kVA -4

SOETECK High-frequency Online UPS, 10-60kVA, Tower, PF1

The SOETECK SY-T Series Online High-frequency UPS, 10-60kVA, Tower, PF1 offers robust and efficient power protection for mission-critical systems. With true double-conversion technology, a power factor of 1.0, and three-phase input/output support, it ensures clean...

Models

Sales Contact View Details

Models

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYT10kVA	10kVA / 10kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 360/380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out; 3 phase in, 1 phase out; 1 phase in, 1 phase out
SYT20kVA	20kVA / 20kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 360/380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase in, 3 phase out; 3 phase in, 1 phase out; 1 phase in, 1 phase out
SYT30kVA	30kVA / 30kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 360/380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase N PE
SYT40kVA	40kVA / 40kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 360/380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase N PE
SYT60kVA	60kVA / 60kW	110-300 VAC at 50% load; 176-276 VAC at 100% load	3 x 360/380/400/415 VAC (3PH N)	95.5% (AC mode) ; 98.5% ( ECO mode) ; 94.5% ( Battery mode )	3 phase N PE

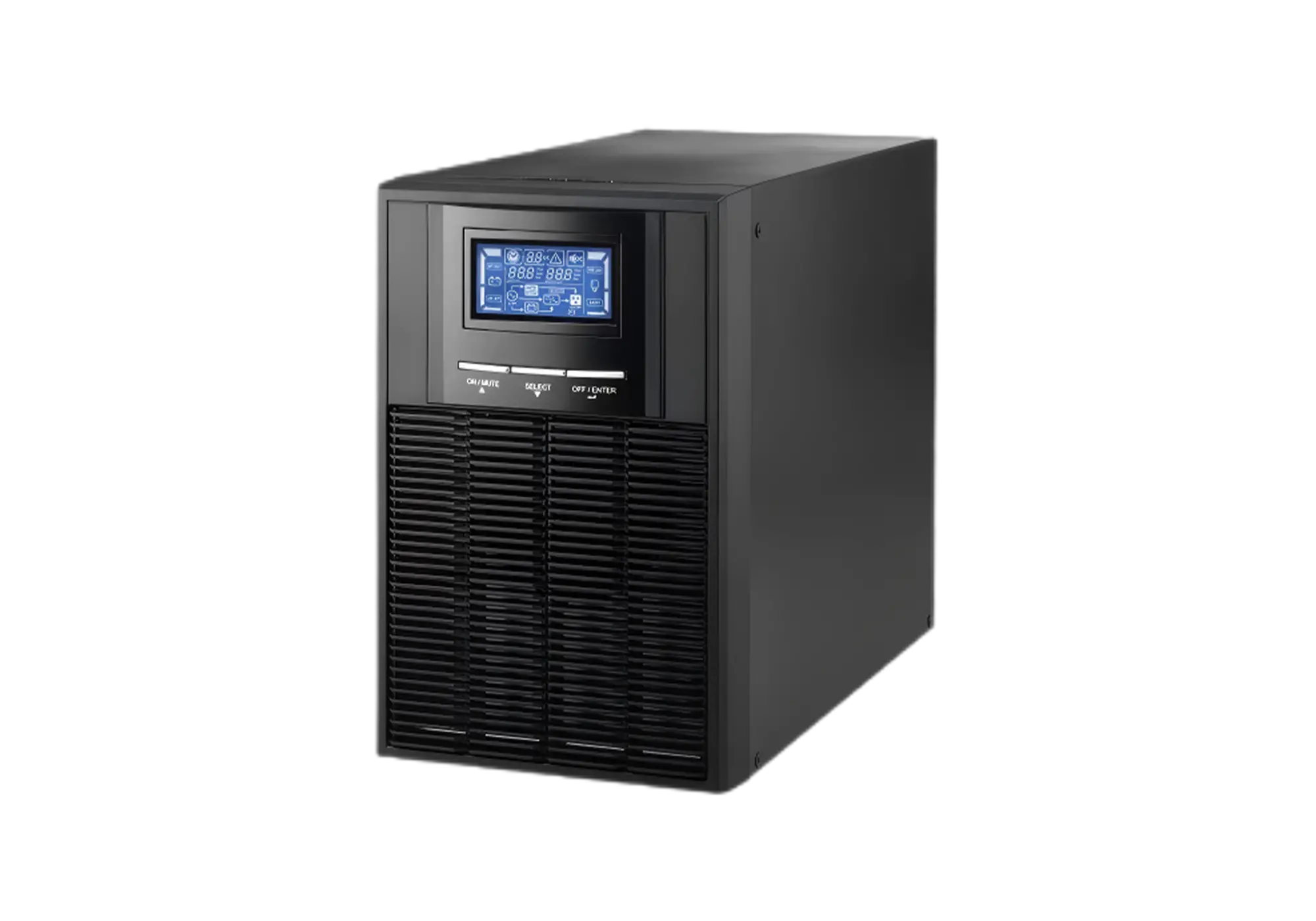

Soeteck SY-T Winner Pro+, PF1, 6-10kVA -1

Soeteck SY-T Winner Pro+, PF1, 6-10kVA -3

Soeteck SY-T Winner Pro+, PF1, 6-10kVA -2

Soeteck SY-T Winner Pro+, PF1, 6-10kVA -4

SOETECK High-frequency Online UPS, 6kVA/10kVA, Tower, PF1, True Double Conversion

The SOETECK SY-T Series Online High-frequency UPS, 6kVA/10kVA, Tower, PF1, True Double Conversion provides reliable and efficient power protection for critical systems. Supporting single-phase input and output, it delivers up to 94% efficiency in AC...

Models

Sales Contact View Details

Models

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYT6kVA	6kVA/6kW	110~300VAC (± 3%) at 50% load; 176~300VAC (± 3%) at 100% load	Nominal: 208/220/230/240 VAC	94% (AC mode) ; 98.5% ( ECO mode) ; 92% ( Battery mode )	1 phase in, 1 phase out
SYT10kVA	10kVA/10kW	110~300VAC (± 3%) at 50% load; 176~300VAC (± 3%) at 100% load	Nominal: 208/220/230/240 VAC	94% (AC mode) ; 98.5% ( ECO mode) ; 92% ( Battery mode )	1 phase in, 1 phase out

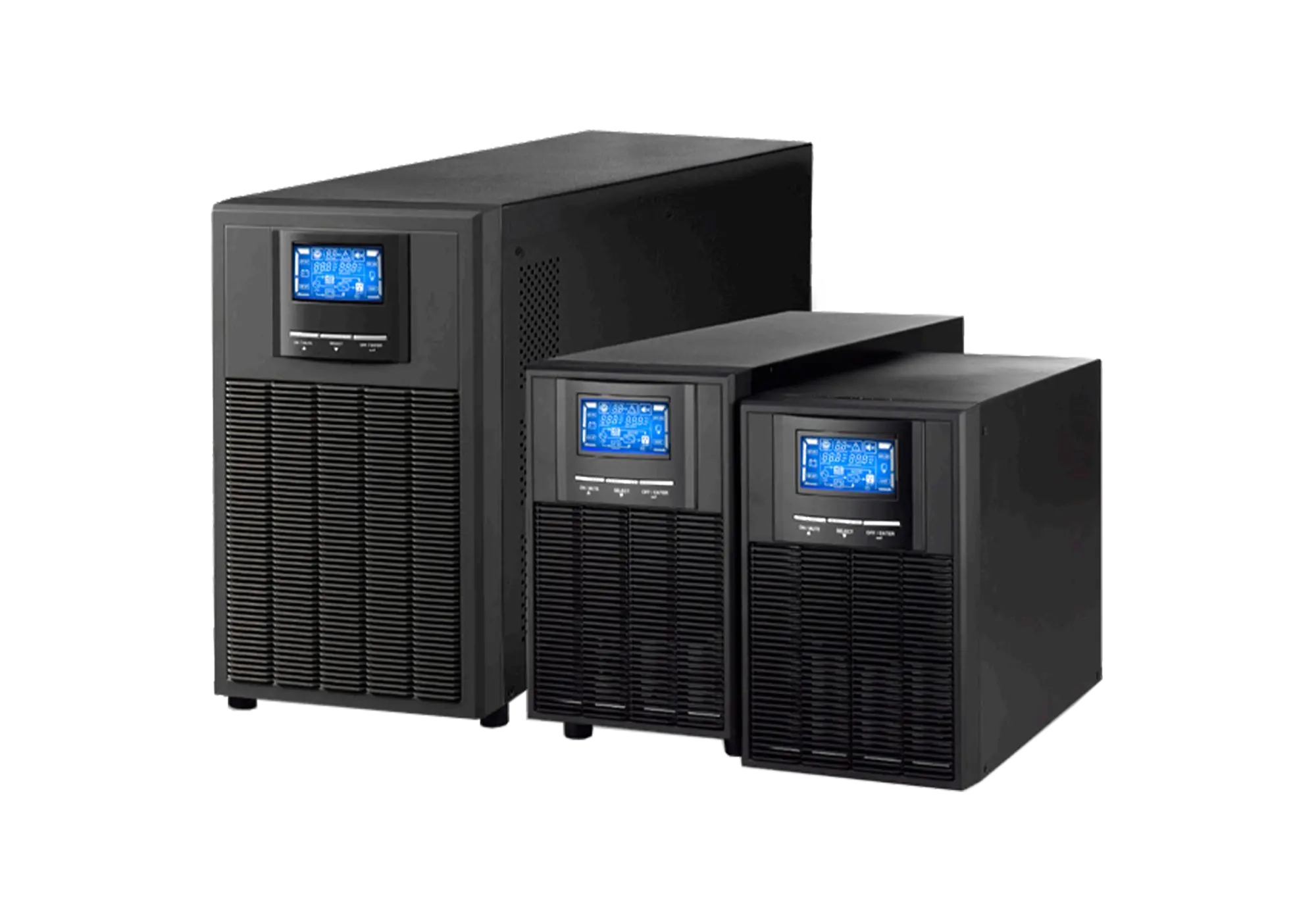

Soeteck SY-T Series Winner Pro+, PF1, 1-3kva-2

Soeteck SY-T Series Winner Pro+, PF1, 1-3kva-3

Soeteck SY-T Series Winner Pro+, PF1, 1-3kva-1

SOETECK High-frequency Online UPS, 1kVA/2kVA/3kVA, Tower Mounted, PF1

The SOETECK SY-T Series Online High-frequency UPS, 1kVA/2kVA/3kVA, Tower, PF1, True Double Conversion is a compact, high-performance UPS solution designed for critical applications. Supporting single-phase input and output, it delivers clean and stable power with...

Models

Sales Contact View Details

Models

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYT1K	1000VA / 1000W	110~300 VAC(Based on load at 50%); 160~300 VAC (Based on load at 100%)	Nominal: 200/208/220/230/240 VAC	≧ 92% or ≧ 94% at full charged battery ( AC mode ) ; ≧ 96% at full charged battery ( ECO mode ) ; ≧ 86% or ≧ 91% ( Battery mode )	1 phase PE
SYT2K	2000VA / 2000W	110~300 VAC(Based on load at 50%); 160~300 VAC (Based on load at 100%)	Nominal: 200/208/220/230/240 VAC	≧ 92% or ≧ 94% at full charged battery ( AC mode ) ; ≧ 96% at full charged battery ( ECO mode ) ; ≧ 86% or ≧ 91% ( Battery mode )	1 phase PE
SYT3K	3000VA / 3000W	110~300 VAC(Based on load at 50%); 160~300 VAC (Based on load at 100%)	Nominal: 200/208/220/230/240 VAC	≧ 92% or ≧ 94% at full charged battery ( AC mode ) ; ≧ 96% at full charged battery ( ECO mode ) ; ≧ 86% or ≧ 91% ( Battery mode )	1 phase PE

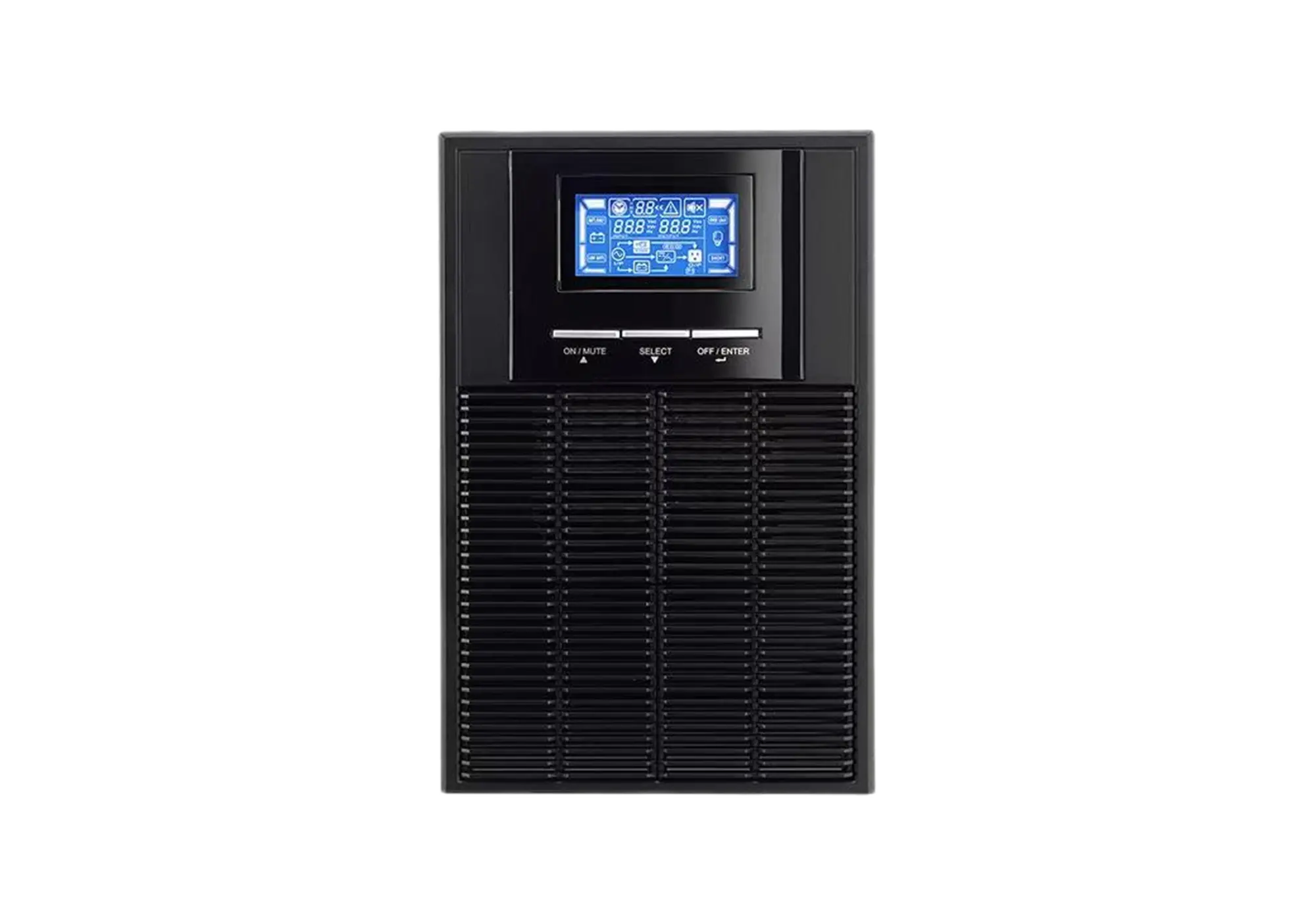

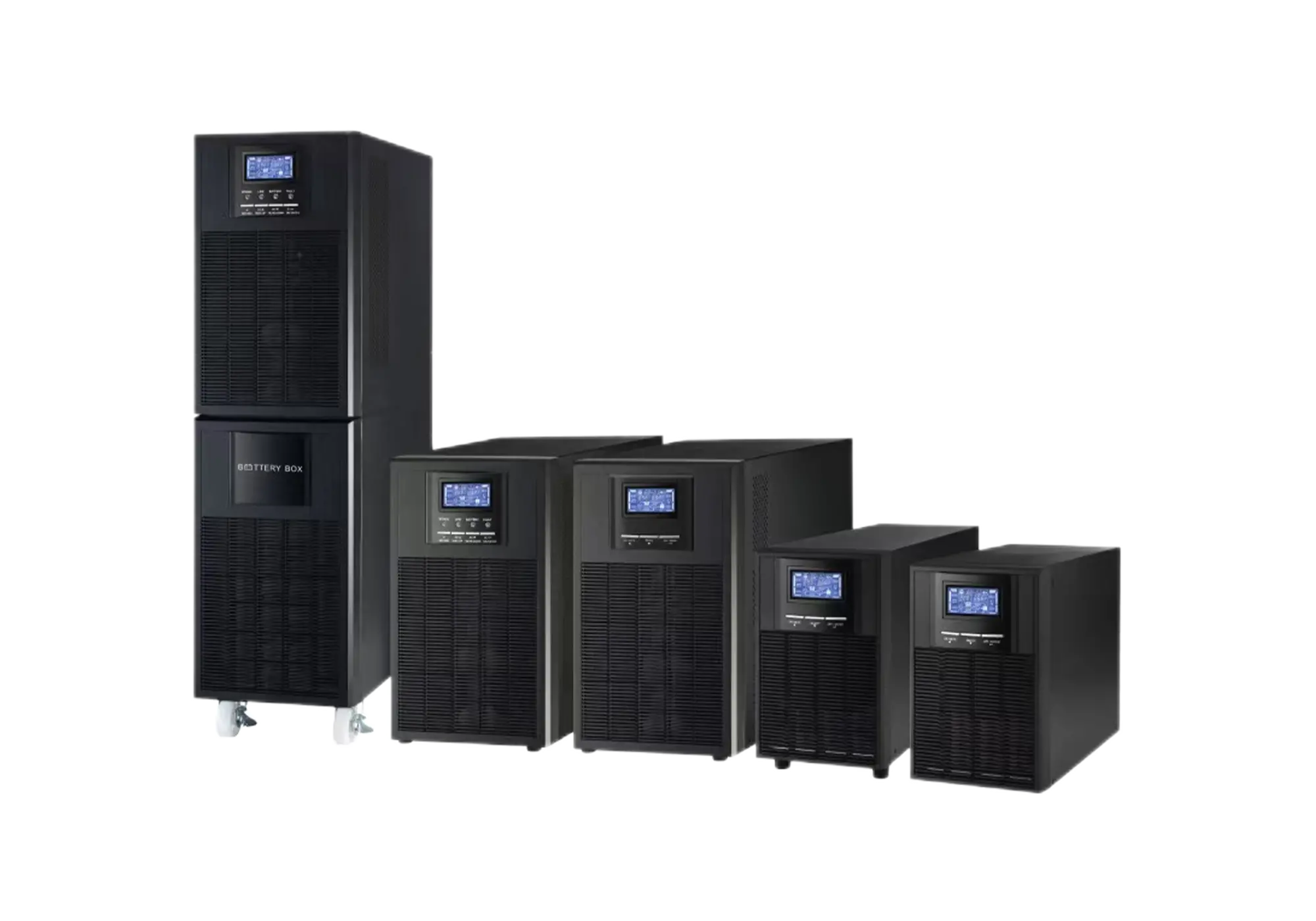

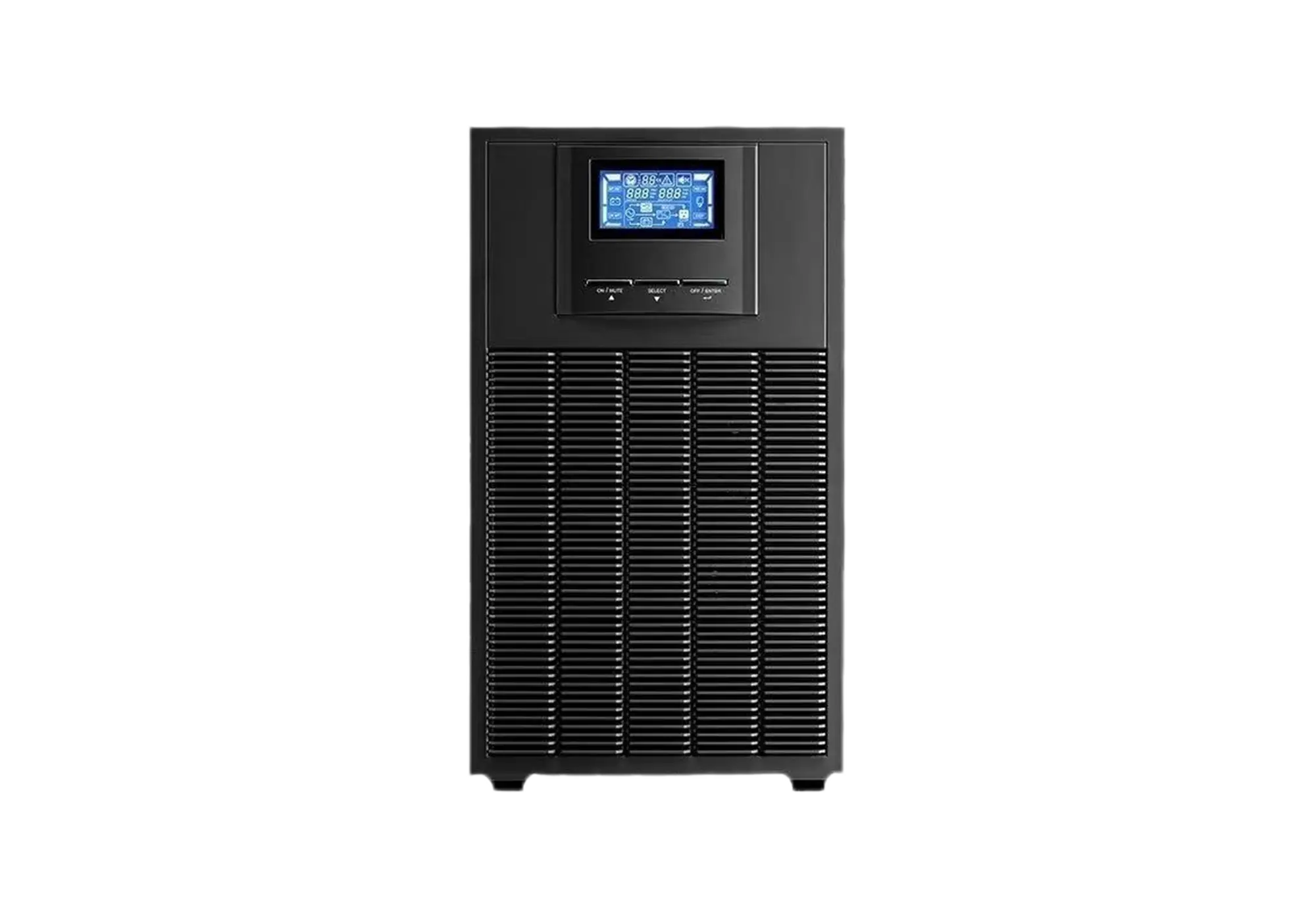

Soeteck SY-T Series Winner Pro+, PF0.9-1

Soeteck SY-T Series Winner Pro+, PF0.9-3

Soeteck SY-T Series Winner Pro+, PF0.9-4

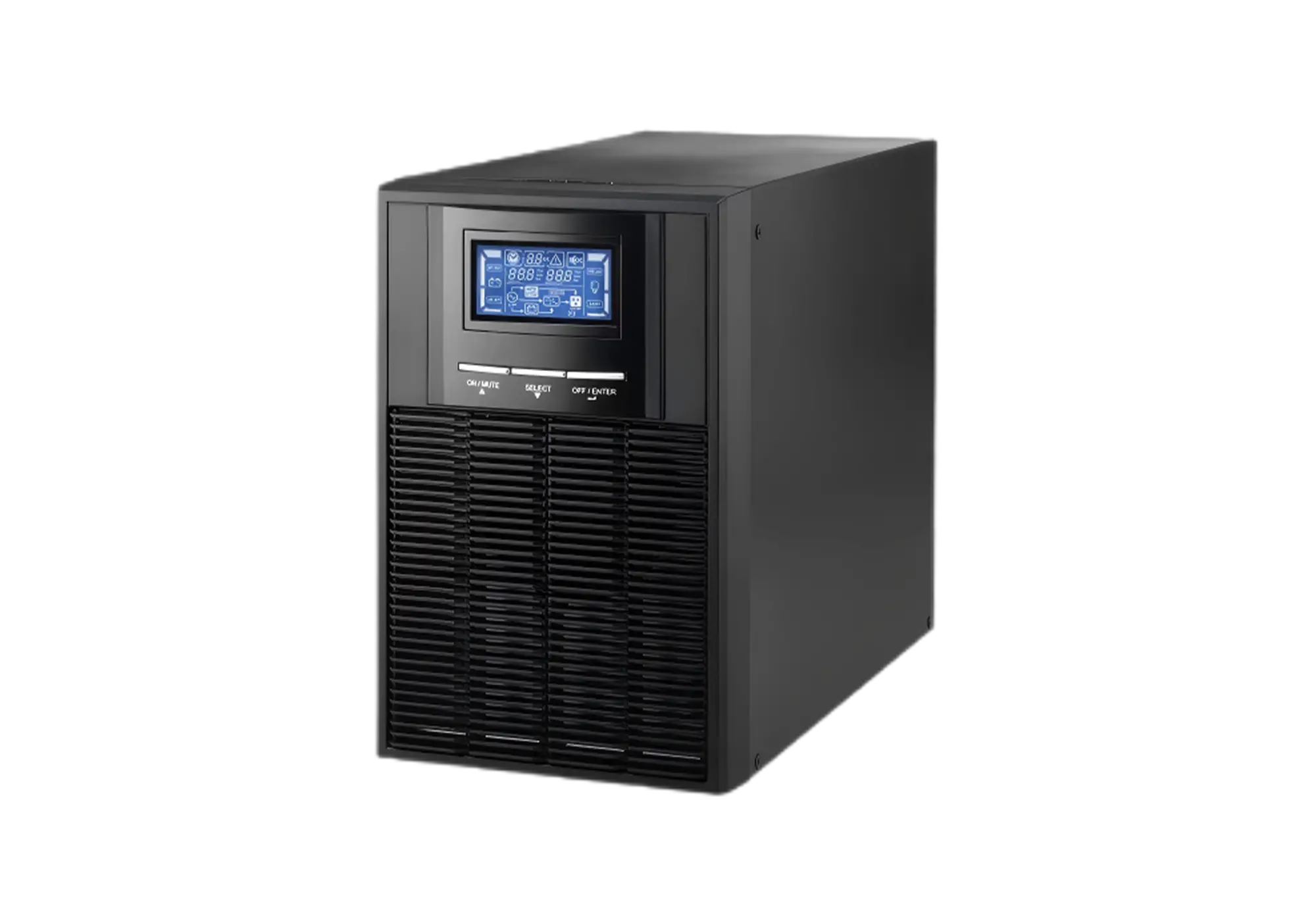

Soeteck SY-T Series Winner Pro+, PF0.9-5

SOETECK Smart High-Frequency Online UPS, 1kVA-10kVA, Tower Mount, PF0.9

The SOETECK SY-T Series Winner Pro UPS, Online High-frequency UPS, 1kVA-10kVA, Tower Mount, PF0.9, True Double Conversion is a versatile and energy-efficient power protection solution. With true double-conversion technology, a wide input voltage range of...

Models

Sales Contact View Details

Models

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYTWinner Pro 1kVA	1000VA / 900W	60-145 VAC or 120-300 VAC (Based on load at 50%) ; 90-145 VAC or 180-300 VAC (Based on load at 100%)	Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase PE
SYTWinner Pro 2kVA	2000VA / 1800W	60-145 VAC or 120-300 VAC (Based on load at 50%) ; 90-145 VAC or 180-300 VAC (Based on load at 100%)	Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase PE
SYTWinner Pro 3kVA	3000VA / 2700W	60-145 VAC or 120-300 VAC (Based on load at 50%) ; 90-145 VAC or 180-300 VAC (Based on load at 100%)	Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase PE
SYTWinner Pro 6kVA	6000VA / 5400W	60-145 VAC or 120-300 VAC (Based on load at 50%) ; 90-145 VAC or 180-300 VAC (Based on load at 100%)	Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase PE
SYTWinner Pro 10kVA	10000VA / 9000W	60-145 VAC or 120-300 VAC (Based on load at 50%) ; 90-145 VAC or 180-300 VAC (Based on load at 100%)	Nominal: 100/110/115/120/127VAC or 200/208/220/230/240VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase PE

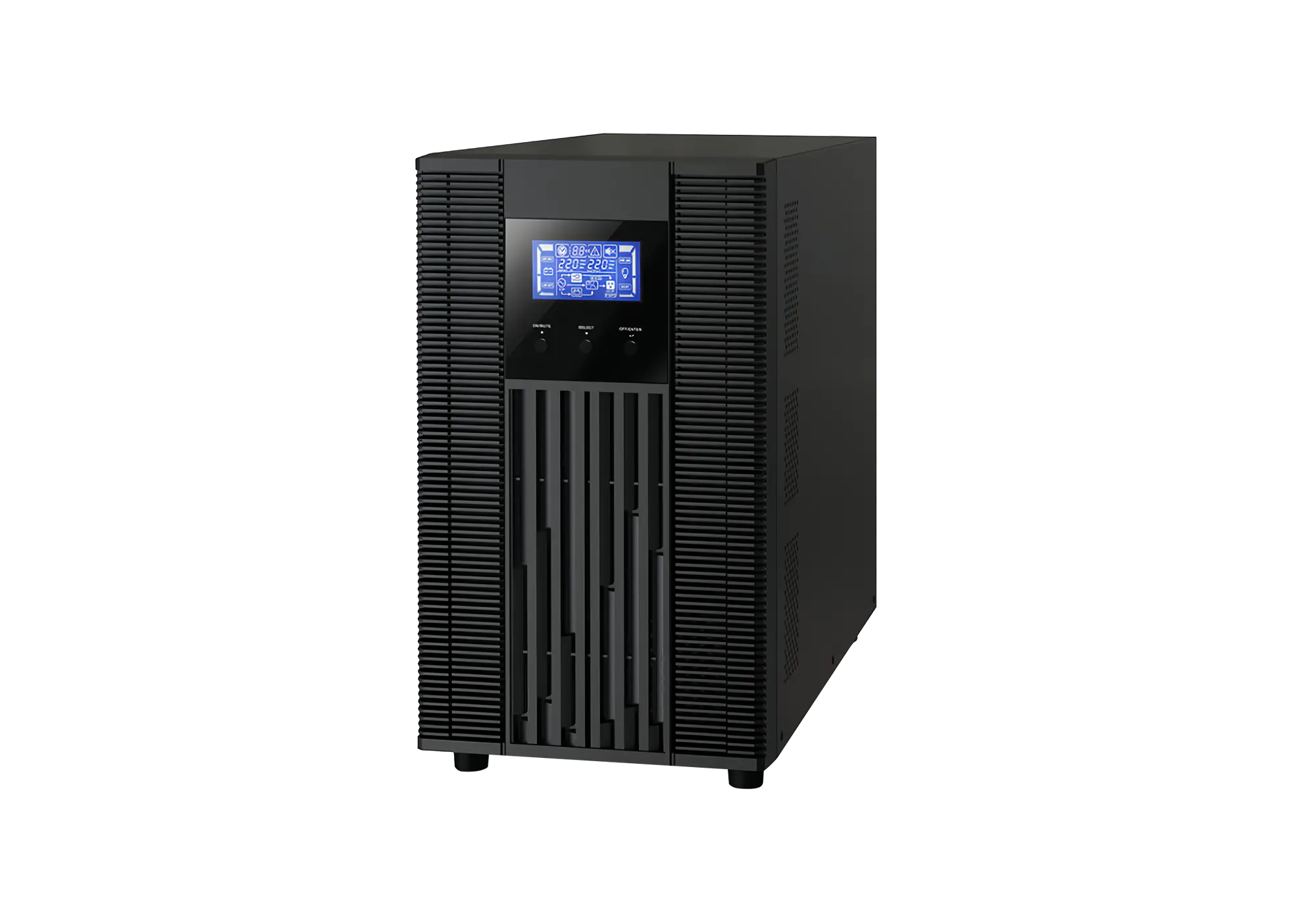

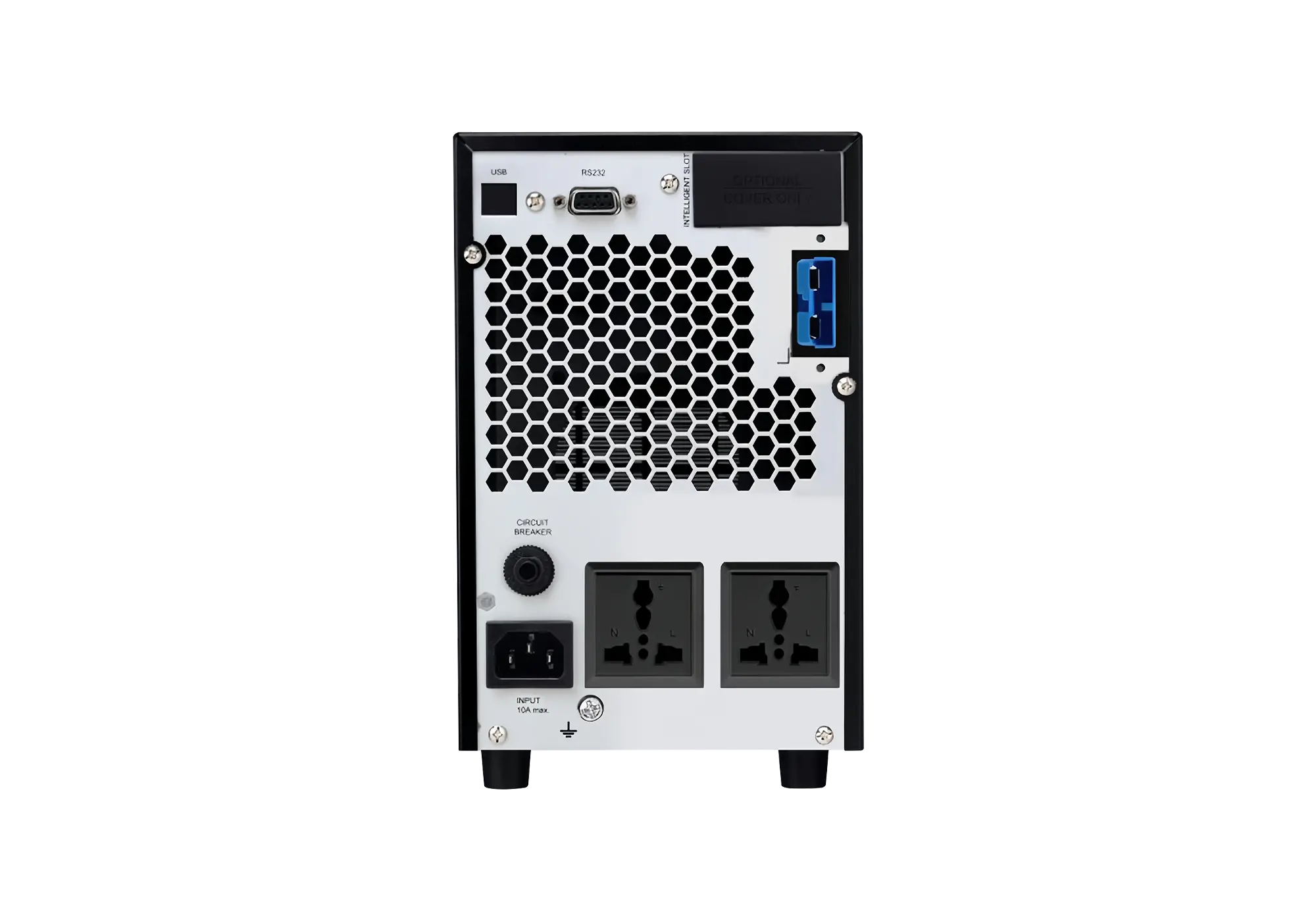

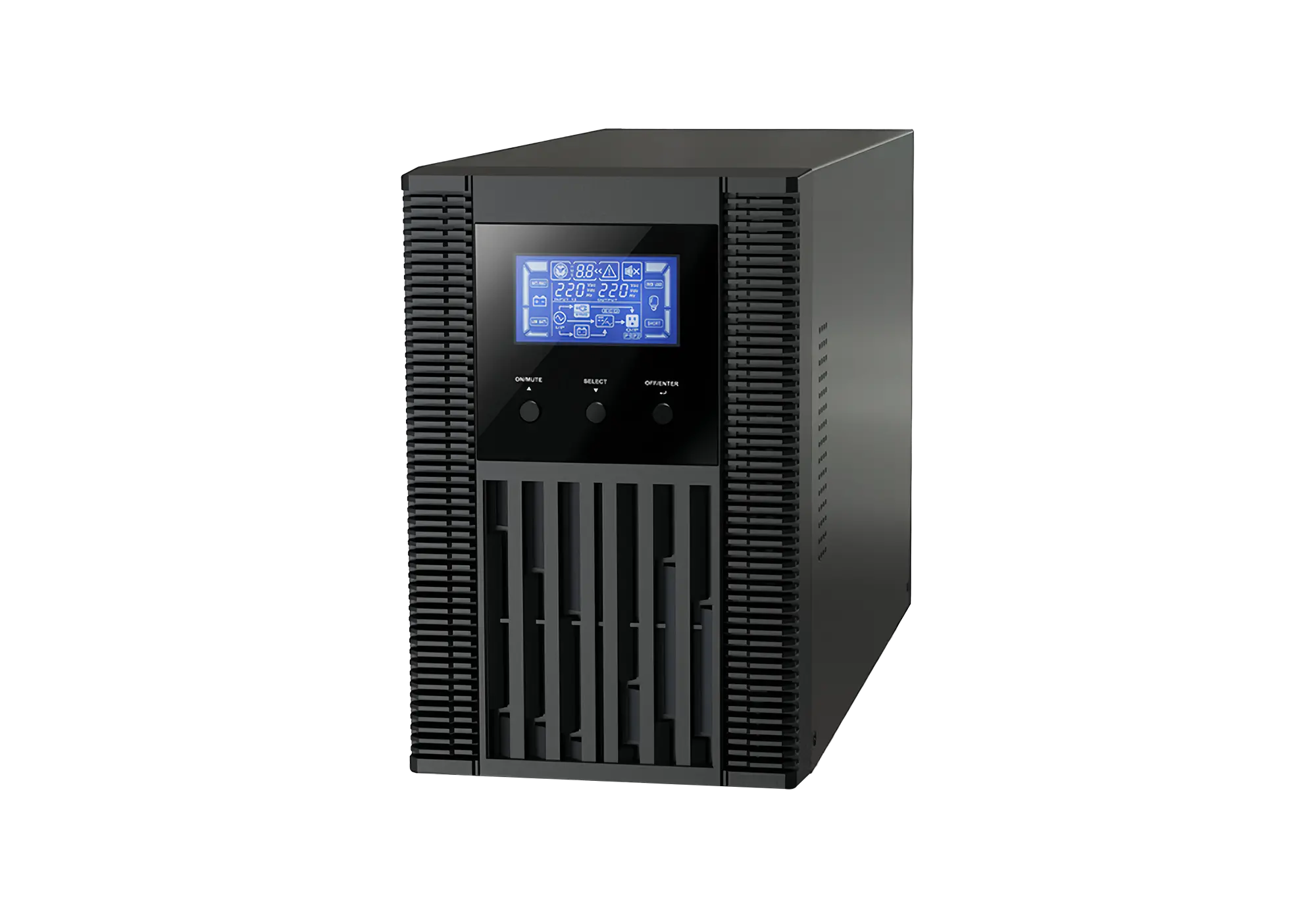

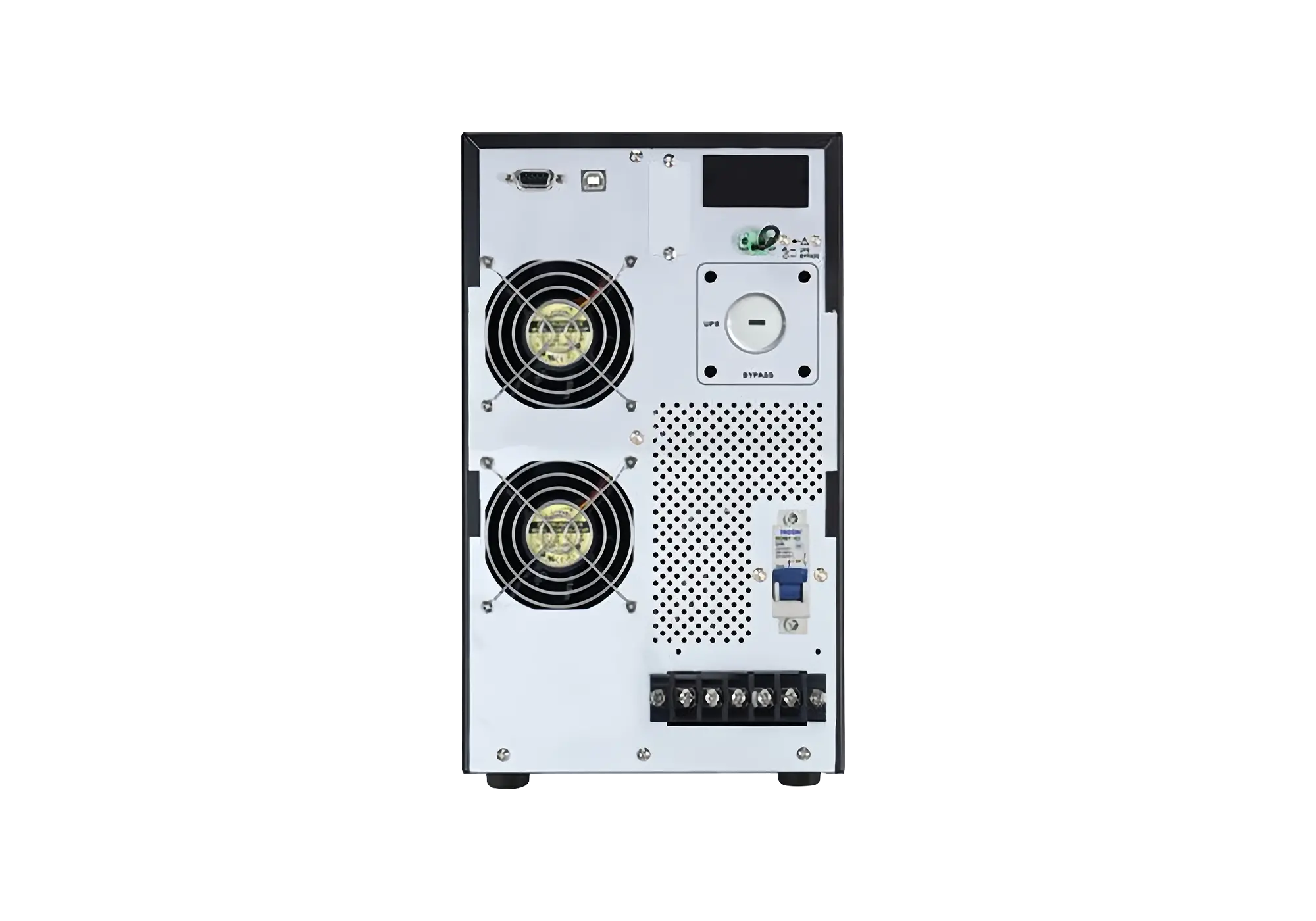

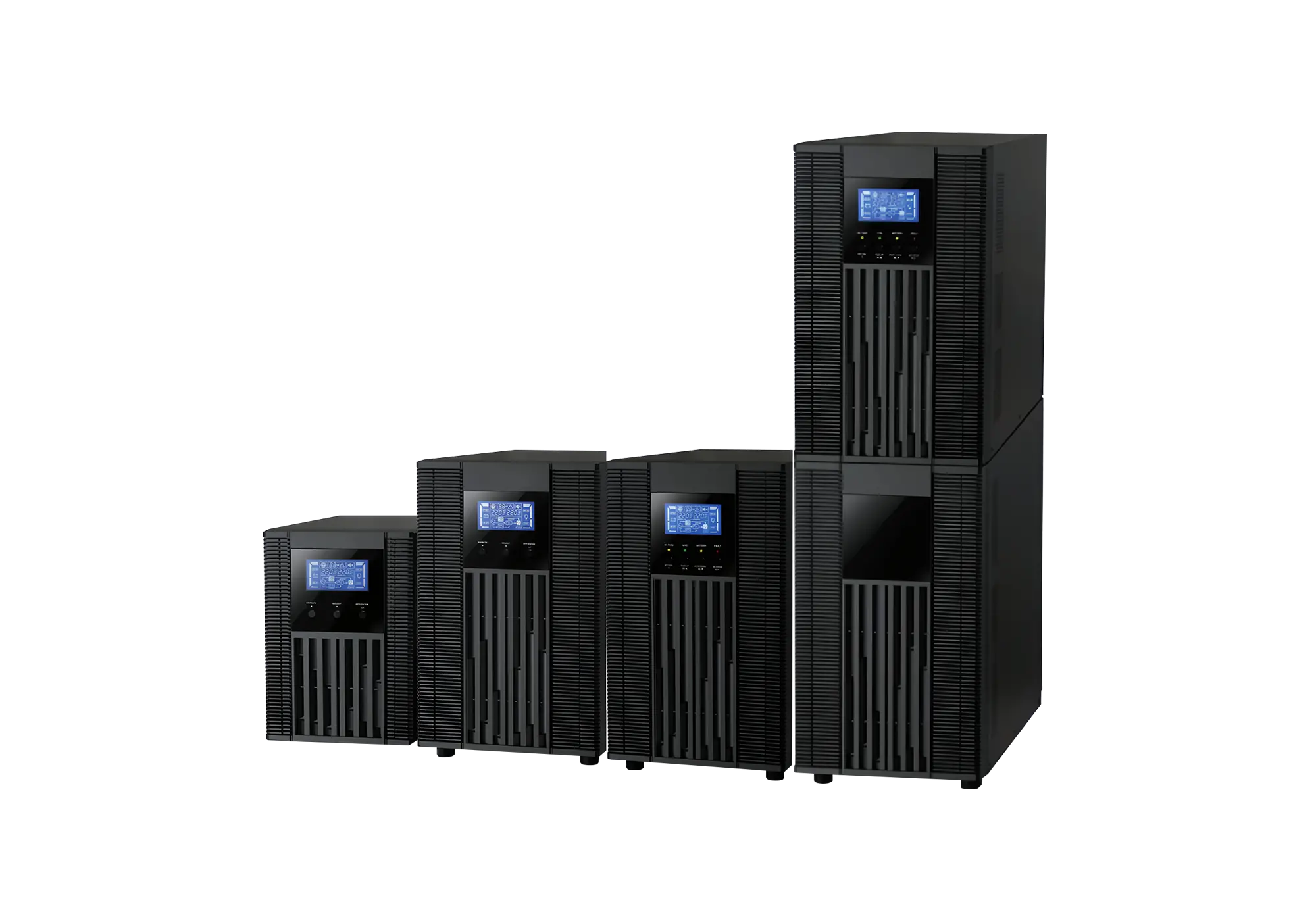

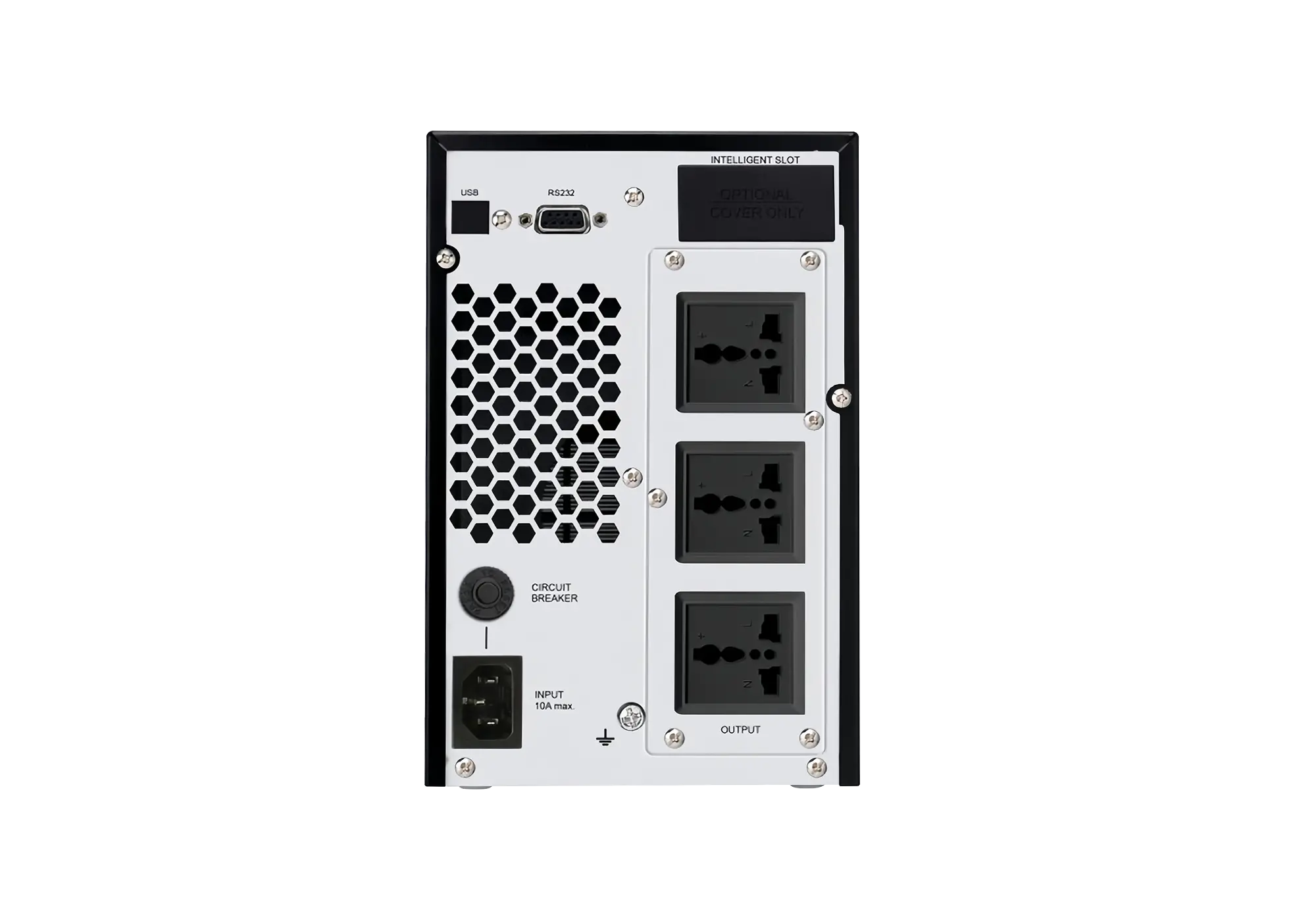

Soeteck Online High-Frequency UPS, 1-6kVA -1

Soeteck Online High-Frequency UPS, 1-6kVA -2

Soeteck Online High-Frequency UPS, 1-6kVA -3

Soeteck Online High-Frequency UPS, 1-6kVA -4

Soeteck Online High-Frequency UPS, 1-6kVA -7

Soeteck Online High-Frequency UPS, 1-6kVA -8

Soeteck Online High-Frequency UPS, 1-6kVA -9

SOETECK High-Frequency Online UPS, 1kVA-10kVA, Tower Mount, PF0.9

The SOETECK SY-T Series Winner Pro UPS, Online High-frequency UPS, 1kVA-10kVA, Tower Mount, PF0.9 is a high-performance power solution designed for critical applications. Its wide input voltage range of 110V–300V, advanced PF 0.9 output, and...

Models

Sales Contact View Details

Models

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYT1kVA	1000VA/900W	110-300VAC at 50% load; 160-280 VAC or 170-300 VAC at 100% load	Nominal: 208/220/230/240 VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase PE
SYT2kVA	2000VA/1800W	110-300VAC at 50% load; 160-280 VAC or 170-300 VAC at 100% load	Nominal: 208/220/230/240 VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase PE
SYT3kVA	3000VA/2700W	110-300VAC at 50% load; 160-280 VAC or 170-300 VAC at 100% load	Nominal: 208/220/230/240 VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase PE
SYT6kVA	6000VA/5400W	110-300VAC at 50% load; 160-280 VAC or 170-300 VAC at 100% load	Nominal: 208/220/230/240 VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase PE
SYT10kVA	10000VA/9000W	110-300VAC at 50% load; 160-280 VAC or 170-300 VAC at 100% load	Nominal: 208/220/230/240 VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase PE

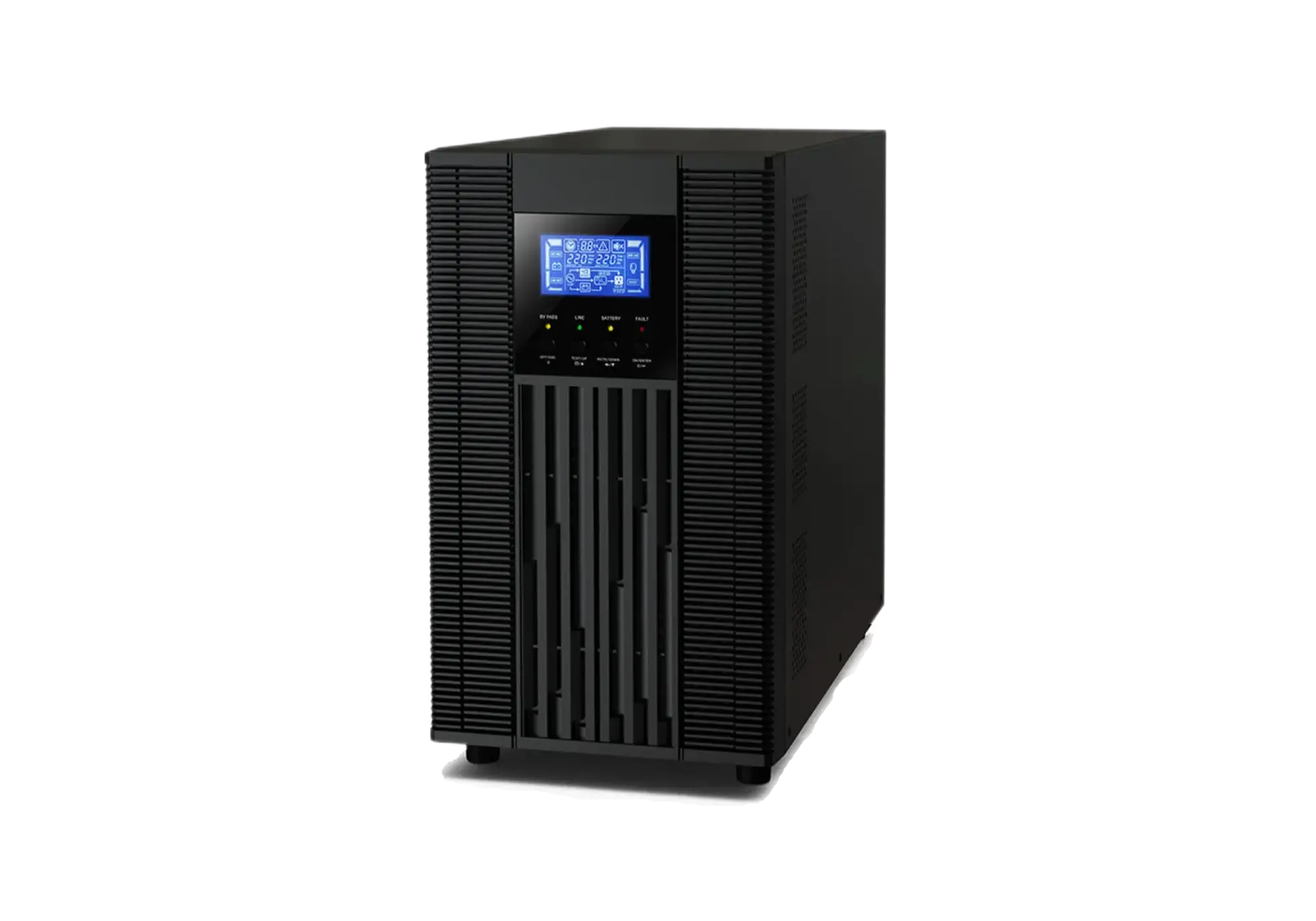

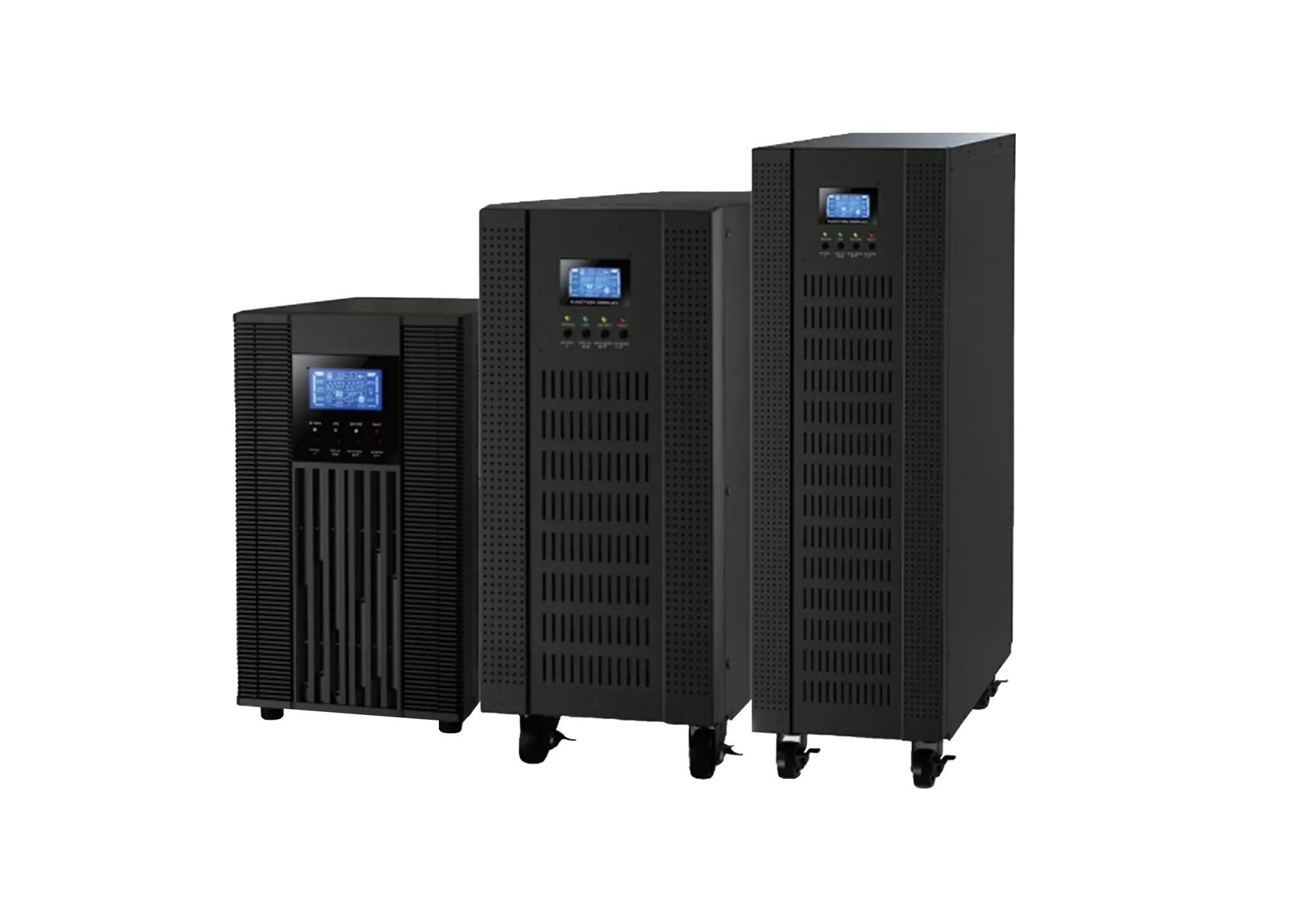

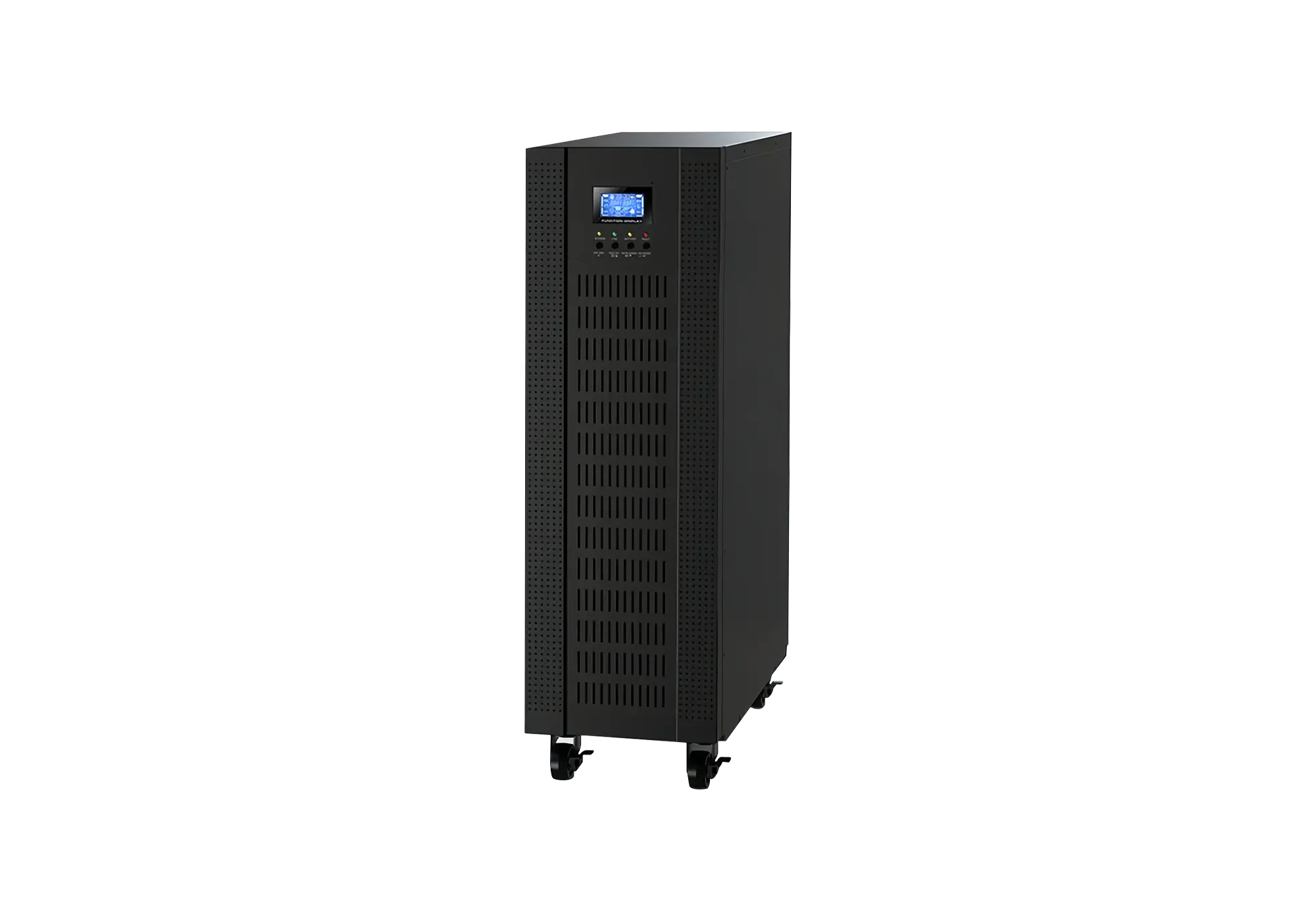

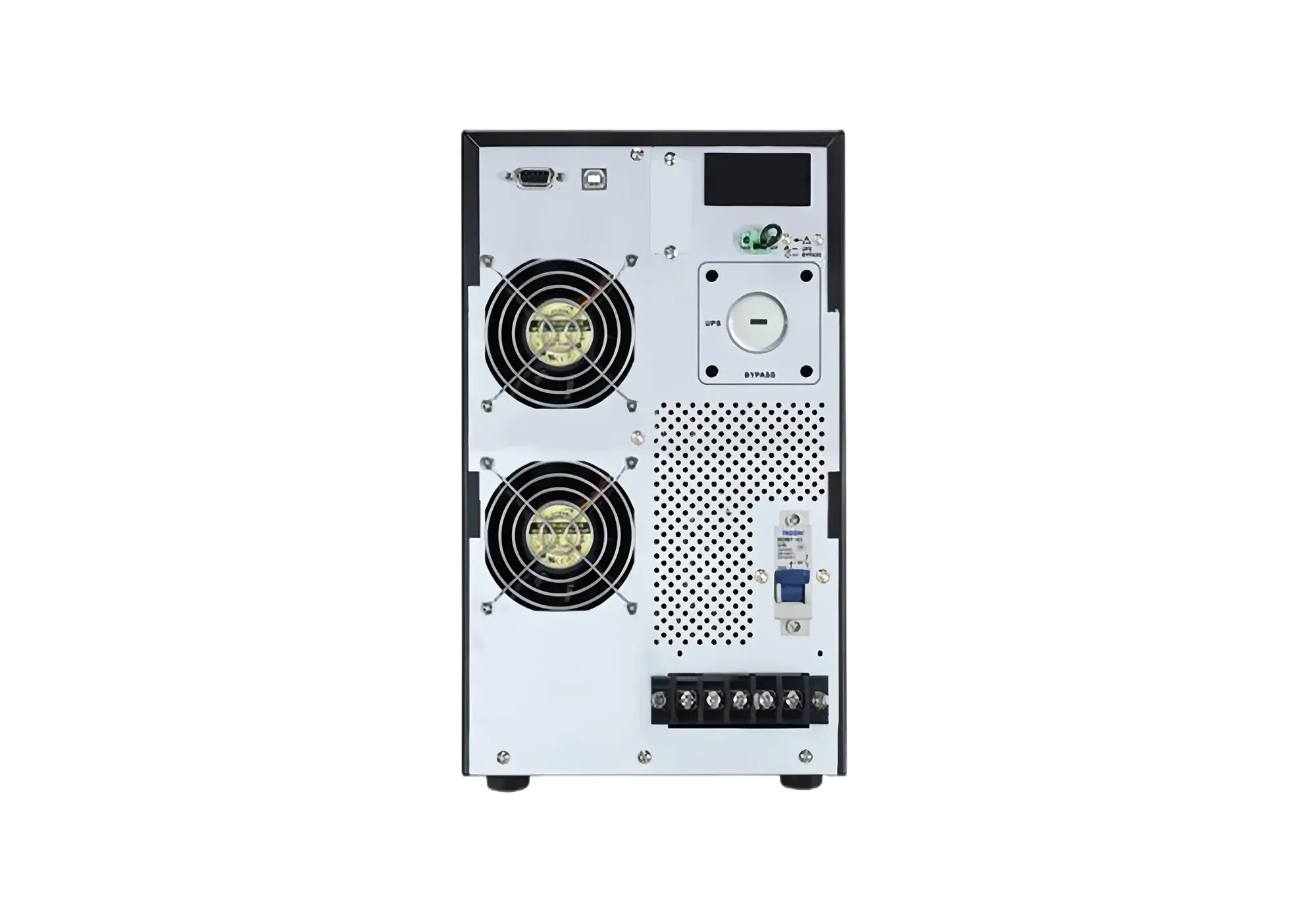

Soeteck Online High-Frequency UPS, 10-30kVA -1

Soeteck Online High-Frequency UPS, 10-30kVA -2

Soeteck Online High-Frequency UPS, 10-30kVA -3

Soeteck Online High-Frequency UPS, 10-30kVA -4

Soeteck High-Frequency Online UPS, 10kVA-30kVA, Tower Mount, PF0.8

The SOETECK SY-T Series UPS, Online High-frequency UPS 10kVA-30kVA provides true double-conversion power protection with PF0.8 efficiency. Designed for critical applications, it features a wide input range of 190-520VAC, 50/60Hz frequency conversion, and advanced DSP...

Models

Sales Contact View Details

Models

Models	Power Rating	Input Voltage Range	Output Voltage Range	Efficiency	Wiring
SYT10kVA	10kVA / 8kW	190-520 VAC (3-phase) at 50% load; 305-520 VAC (3-phase) at 100% load	Nominal: 208/220/230/240 VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase in, 1 phase out
SYT15kVA	15kVA / 12kW	190-520 VAC (3-phase) at 50% load; 305-520 VAC (3-phase) at 100% load	Nominal: 208/220/230/240 VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase in, 1 phase out
SYT20kVA	20kVA / 16kW	190-520 VAC (3-phase) at 50% load; 305-520 VAC (3-phase) at 100% load	Nominal: 208/220/230/240 VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase in, 1 phase out
SYT30kVA	30kVA / 24kW	190-520 VAC (3-phase) at 50% load; 305-520 VAC (3-phase) at 100% load	Nominal: 208/220/230/240 VAC	88% - 93% ( AC mode ) ; 83% - 91% ( Battery mode )	1 phase in, 1 phase out
