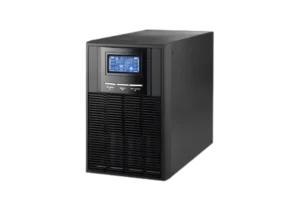

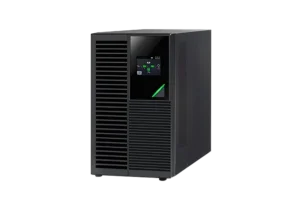

SOETECK High-frequency Online UPS, 6kVA/10kVA, Tower, PF1, True Double Conversion
The SOETECK SY-T Series Online High-frequency UPS, 6kVA/10kVA, Tower, PF1, True Double Conversion provides reliable and efficient power protection for critical systems. Supporting single-phase input and output, it delivers up to 94% efficiency in AC mode and features a wide input voltage range of 110V to 300V. With low THD (<4% at 100% load), intelligent battery management, and optional remote monitoring via SNMP, USB, or RS-232, this UPS ensures clean, consistent power for IT networks, industrial operations, and demanding applications.
| UPS Structure | Online Double Conversion |
| Input Voltage | 110~300VAC ± 3 % at 50% load, 176~300VAC ± 3 % at 100% load |
| Output Voltage | 208/220/230/240 VAC |
| Power factor | ≥ 0.99 @ 100% load |
| Frequency | 46~54 Hz or 56~64 Hz |
| Efficiency | 94% |
| Waveform | Pure Sine Wave |
| Noise | Less than 55dBA @ 1 meter |
Product Overview
The SOETECK SY-T Series Online High-frequency UPS, 6kVA/10kVA, Tower, PF1, True Double Conversion is a cutting-edge power protection solution designed for mission-critical applications. With power capacities of 6kVA and 10kVA and a single-phase input and output configuration, it delivers reliable, uninterrupted power for IT systems, industrial setups, and other demanding environments. Its advanced true double-conversion technology ensures clean, consistent power delivery, safeguarding sensitive equipment from fluctuations and surges.
Engineered with a focus on efficiency and performance, the UPS achieves up to 94% efficiency in AC mode and supports a power factor of 1.0, ensuring full utilization of its rated power. The wide input voltage range of 110V to 300V makes it compatible with unstable grids and generator inputs. Its low total harmonic distortion (THD) of <4% at 100% load enhances the performance of connected systems, minimizing disruptions.
Equipped with intelligent battery management, the SOETECK SY-T Series UPS optimizes battery charging and performance, extending the lifespan of its batteries. With optional SNMP, USB, and RS-232 connectivity, the system offers remote monitoring and control for enhanced operational visibility. Featuring a compact tower design, intuitive LCD displays, and multiple overload protection mechanisms, this UPS is an ideal solution for ensuring power reliability in critical environments.
Features
Clean and Reliable Power Delivery
- True double-conversion technology provides uninterrupted, clean power, protecting equipment from fluctuations and power disturbances.
- The power factor of 1.0 ensures maximum power utilization for connected devices.
- Supports single-phase input and output, making it versatile for various applications.
High Energy Efficiency
- Achieves up to 94% efficiency in AC mode, reducing energy consumption and operational costs.
- Low harmonic distortion (<4% at 100% load) enhances the stability and performance of connected equipment.
- Wide input voltage range of 110V to 300V ensures compatibility with unstable grids and generator inputs.
Advanced Battery Management
- Smart battery charging technology optimizes battery performance and extends service life.
- Supports multiple battery configurations, with adjustable charging currents up to 8A, ensuring flexibility for various runtime needs.
- Efficient recharge design allows for 90% capacity recovery within 9 hours.
Comprehensive Monitoring and Control
- Optional SNMP, USB, and RS-232 connectivity enable seamless remote monitoring and control.
- LCD displays provide real-time insights into load levels, battery health, input/output voltage, and system status.
- Audible alarms and fault indicators ensure timely intervention during critical events.
Robust and Compact Design
- Space-saving tower design makes it suitable for small or constrained environments.
- Built-in overload protection ensures safety, with the ability to handle up to 105-125% load for 10 minutes.
- Durable construction and compliance with global standards ensure long-term reliability.
Applications
- IT Networks and Data Centers
- Industrial Automation Systems
- Healthcare Equipment
- Telecommunication Networks
- Critical Manufacturing Processes
- Banking and Financial Systems

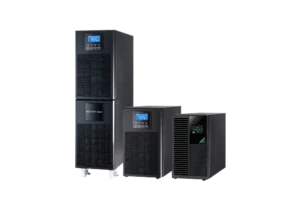

Models
The SOETECK SY-T Series Online High-frequency UPS, 6kVA/10kVA, Tower, PF1, True Double Conversion is available in two models to meet diverse operational needs. The 6kVA model is ideal for medium-scale setups, providing reliable power with high efficiency and compact design. The 10kVA model caters to larger applications, offering extended runtime and enhanced performance. Both models feature single-phase input and output, a wide input voltage range of 110V to 300V, and low THD (<4% at 100% load). With intelligent battery management and optional remote monitoring via SNMP, USB, and RS-232, this series ensures scalable, energy-efficient power protection for critical systems.
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Wiring |
|---|---|---|---|---|---|
| SYT6kVA | 6kVA/6kW | 110~300VAC (± 3%) at 50% load; 176~300VAC (± 3%) at 100% load | Nominal: 208/220/230/240 VAC | 94% (AC mode) ; 98.5% ( ECO mode) ; 92% ( Battery mode ) | 1 phase in, 1 phase out |
| SYT10kVA | 10kVA/10kW | 110~300VAC (± 3%) at 50% load; 176~300VAC (± 3%) at 100% load | Nominal: 208/220/230/240 VAC | 94% (AC mode) ; 98.5% ( ECO mode) ; 92% ( Battery mode ) | 1 phase in, 1 phase out |
