Rack Cooling
The Rack Cooling system is designed for micro and modular data centers, providing an efficient air cooling solution. It uses eco-friendly R410A refrigerant with adjustable cooling capacity (3.5 to 12.0 kW) and fits standard rack structures for future expansion. This precision cooling solution monitors equipment temperatures in real-time, ensuring optimal performance.
The SOETECK Rack Cooling System is a flexible and efficient cooling solution for data center environments, with capacities ranging from 3.9kW to 12.8kW. It features an inverter compressor, EC fan, and precise cooling controllers for...
| Models | Cooling Capacity | Sensible Capacity | Air Volume | Width | Depth | Height | Weight |
|---|---|---|---|---|---|---|---|
| SY-JAF-003 | 3.5kW | 3.5kW | 750m³/h | 483mm | 828mm | 266mm(6U) | 31kg |
| SY-JAF-005 | 6.5kW | 6.5kW | 1100m³/h | 483mm | 828mm | 355mm(8U) | 43kg |
| SY-JAF-007 | 8.5kW | 8.5kW | 1200m³/h | 483mm | 828mm | 445mm(10U) | 52kg |
| SY-JAF-012 | 12.5kW | 12.5kW | 2400m³/h | 483mm | 828mm | 533mm(12U) | 70kg |
The SOETECK Packaged Rack Cooling System is a compact, 3.5kW air-cooled DX unit designed for bottom or middle rack mounting. Its reliable compressor, precise cooling controllers, and integration with BMS ensure optimal performance. Featuring eco-friendly...
| Models | Cooling Capacity | Sensible Capacity | Air Volume | Width | Depth | Height | Weight |
|---|---|---|---|---|---|---|---|
| SY-JA-003 | 3.5kW | 3.5kW | 750m³/h | 440mm | 900mm | 355mm(8U) | 45kg |
The SOETECK Top-mount Package Rack Cooling System is a flexible and efficient cooling solution for micro and mini modular data center environments, offering a capacity range of 2.5kW to 5.5kW. Featuring a top-mounted design, advanced...
| Models | Cooling Capacity | Sensible Capacity | Air Volume | Width | Depth | Height | Weight |
|---|---|---|---|---|---|---|---|
| SY-TA-002 | 2.5kW | 2.5kW | 500m³/h | 600mm | 1100mm | 390mm(9U) | 50kg |
| SY-TA-003 | 3.5kW | 3.5kW | 600m³/h | 600mm | 1100mm | 390mm(9U) | 55kg |
| SY-TA-005 | 5.5kW | 5.5kW | 1200m³/h | 600mm | 1100mm | 521mm(12U) | 65kg |

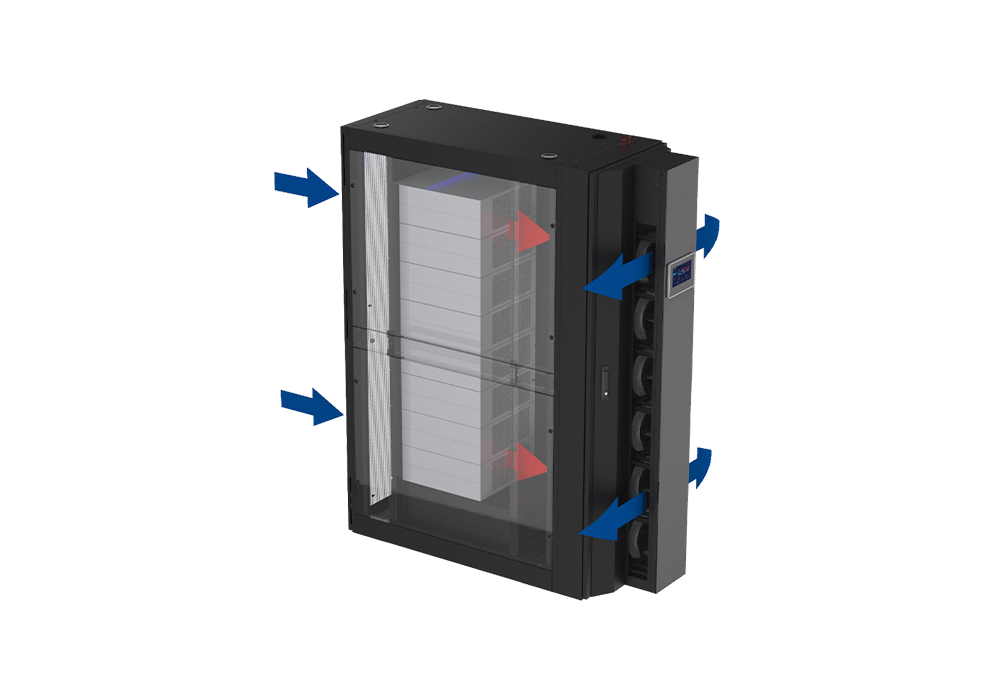

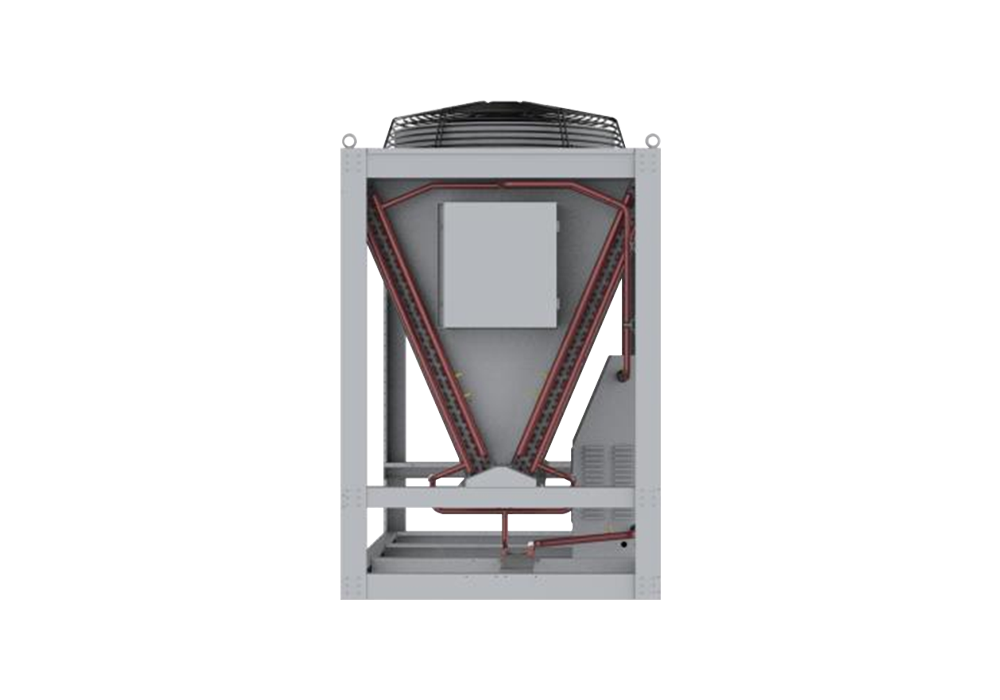

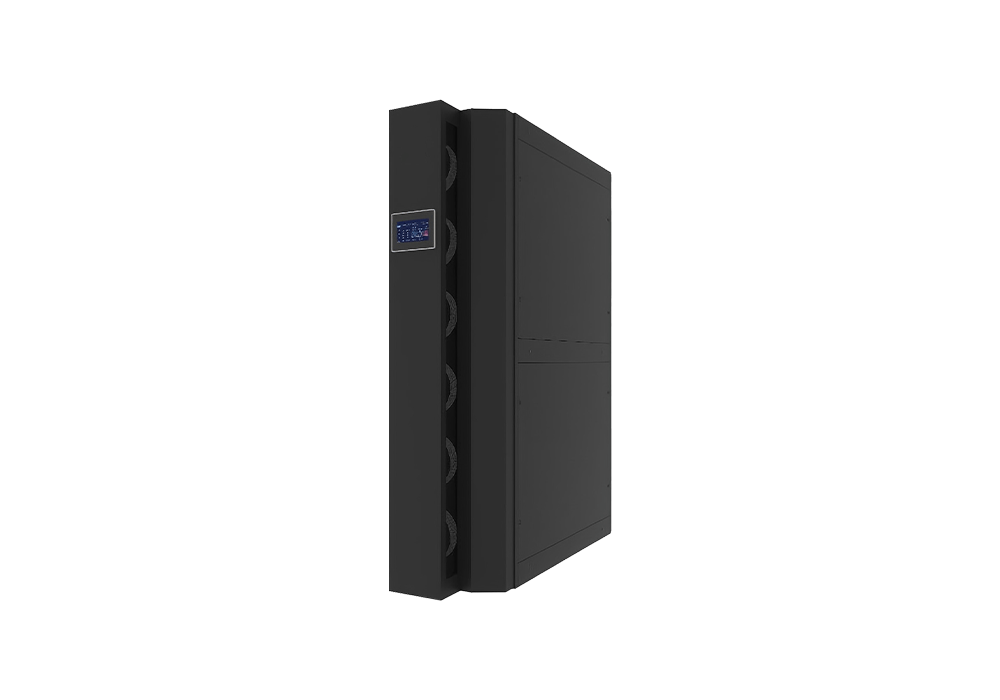

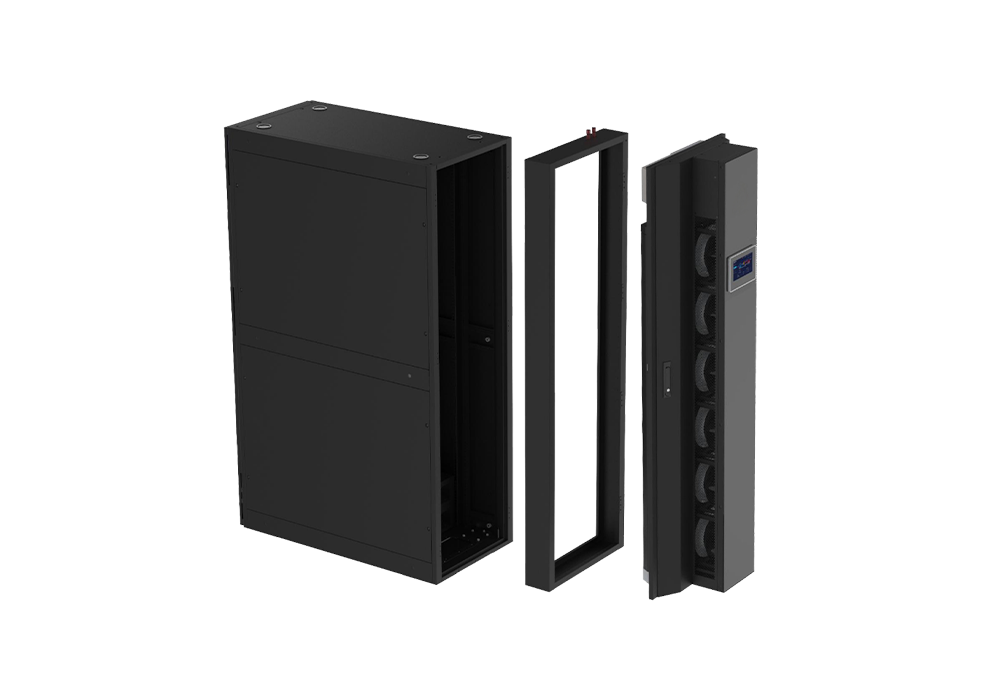

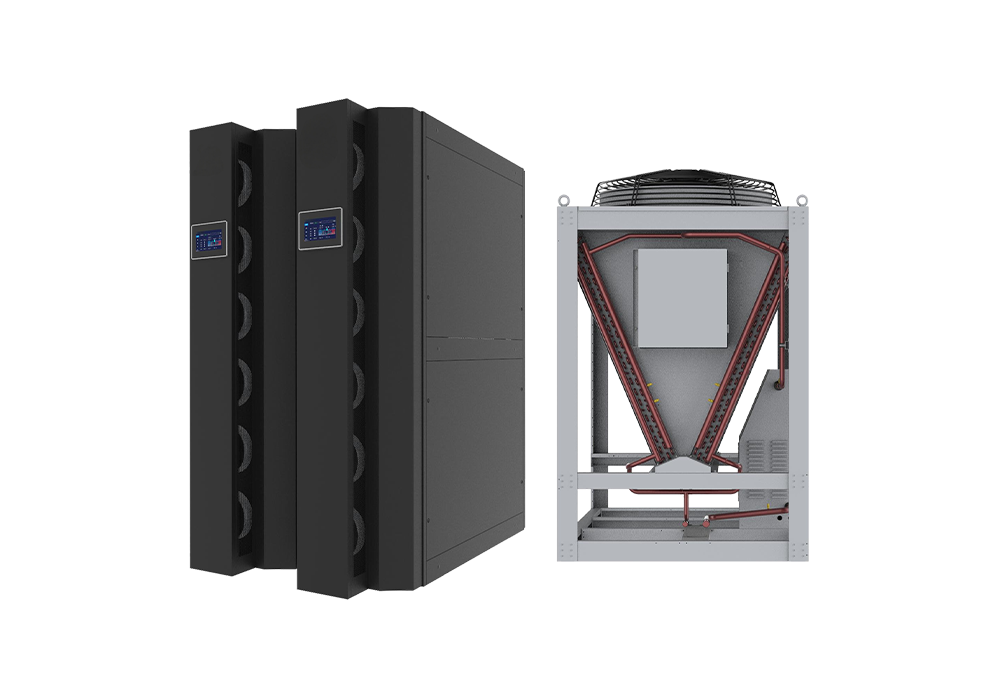

The SOETECK Rear Door HEX DX Rack Cooling System is a high-performance cooling solution offering 21kW to 31kW direct expansion (DX) capacity. Its rear door mounting design enhances energy efficiency by directly targeting the heat...
| Models | Cooling Capacity | Sensible Capacity | Air Volume | Width | Depth | Height | Weight |
|---|---|---|---|---|---|---|---|
| SY-DA-020 | 21.2kW | 21.2kW | 4920m³/h | 600mm | 380mm | 2000mm | 115kg |
| SY-DA-030 | 31.1kW | 31.1kW | 5800m³/h | 600mm | 380mm | 2000mm | 140kg |

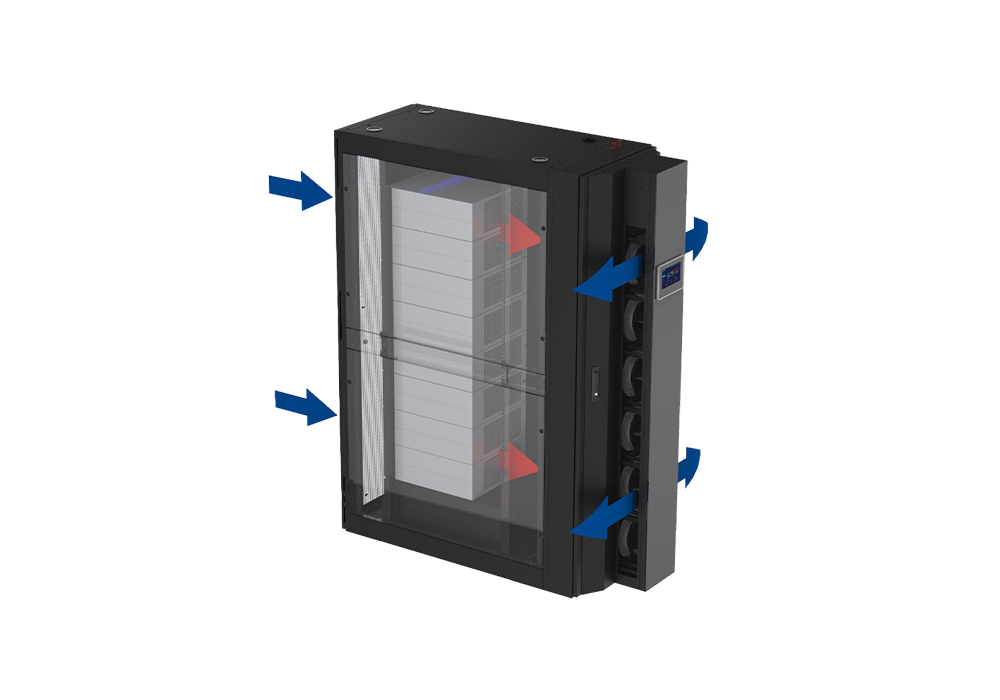

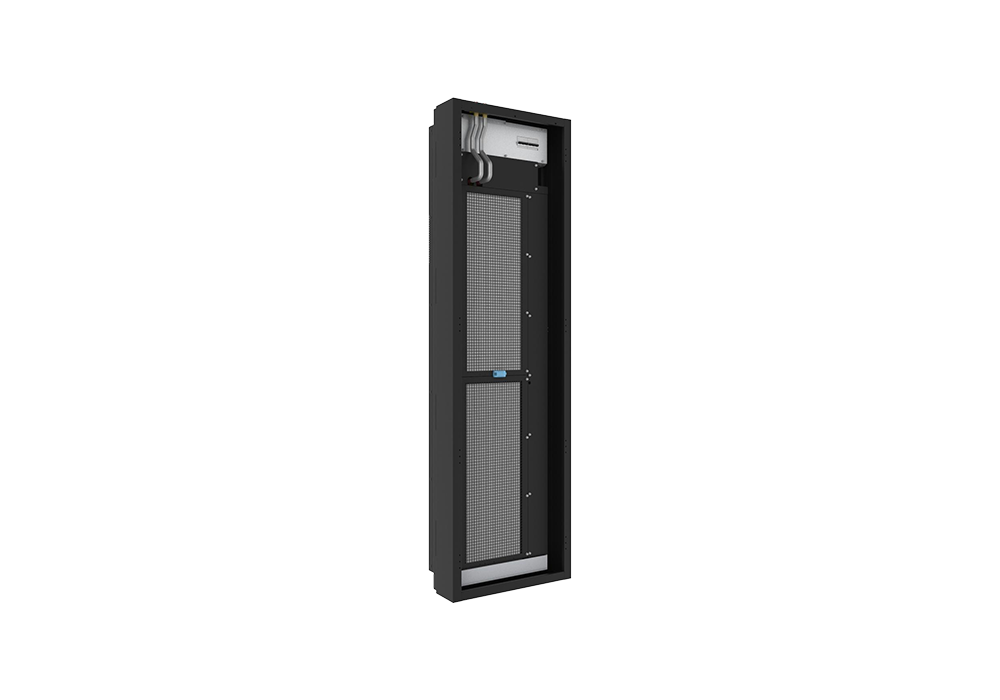

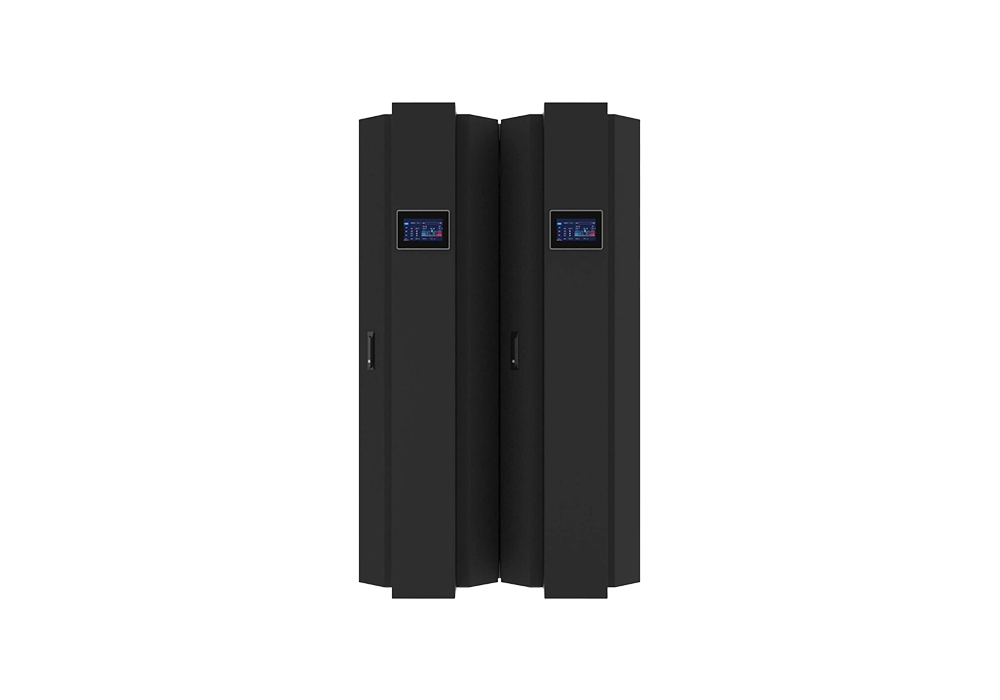

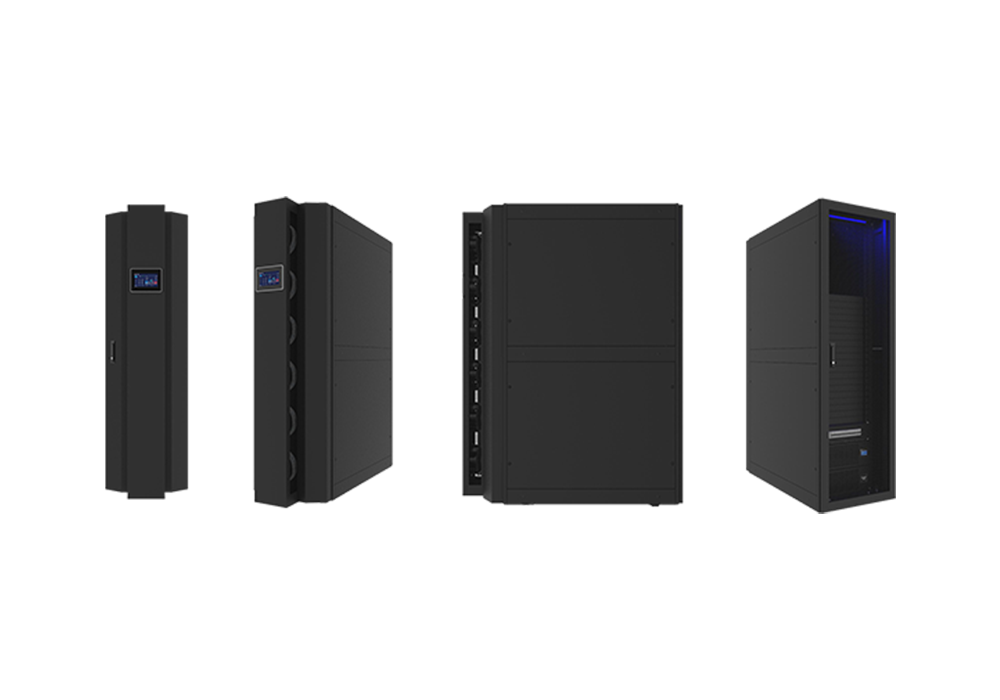

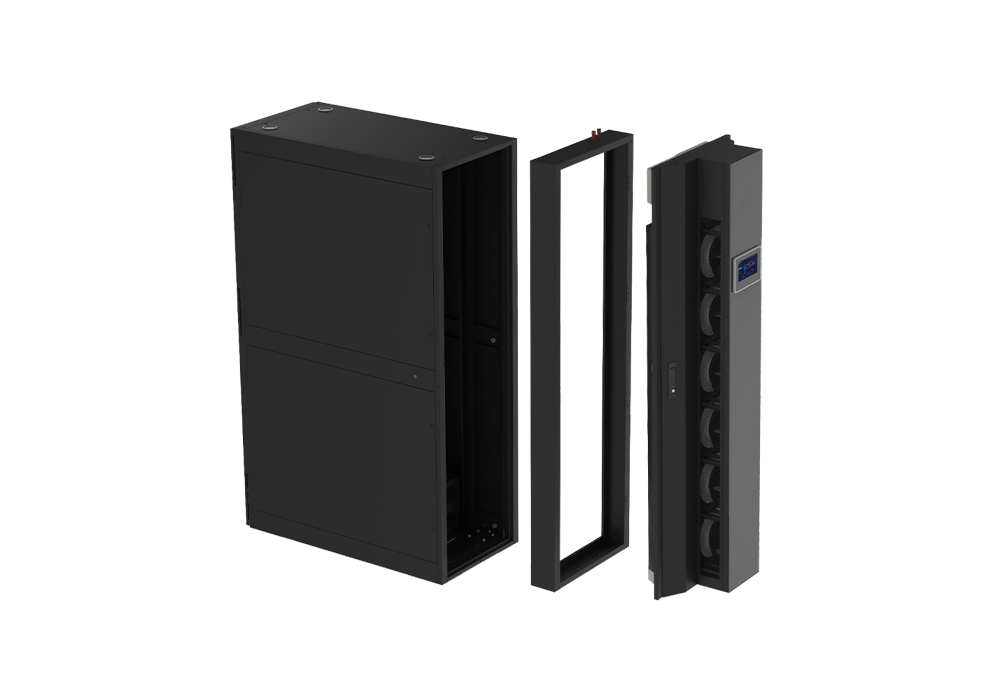

The SOETECK Rear Door HEX CW Rack Cooling System offers high-efficiency cooling with a capacity range of 28.9kW to 65.8kW. Utilizing chilled water as a cooling source, this system ensures sustainable and effective heat removal...
| Models | Cooling Capacity | Sensible Capacity | Air Volume | Width | Depth | Height | Weight |
|---|---|---|---|---|---|---|---|
| SY-DC-025 | 28.9kW | 28.9kW | 4800m³/h | 600mm | 380mm | 2000mm | 120kg |
| SY-DC-045 | 46.0kW | 46.0kW | 9000m³/h | 600mm | 380mm | 2000mm | 230kg |
| SY-DC-065 | 65.8kW | 65.8kW | 11400m³/h | 600mm | 380mm | 2000mm | 240kg |
